Actions

In this section, you will update the "environment template" to use an action. The action will be configured to control the logic defined within the Python code of a function workflow handler.

Step 1: Update Workflow Handler¶

In this step, you will update the existing Workflow Handler used in the Introductory Exercise. You will update the WorkflowHandler function code logic to handle different action types.

In your project, navigate to Environments -> Workflow Handlers
Click on the name of the previously created workflow handler

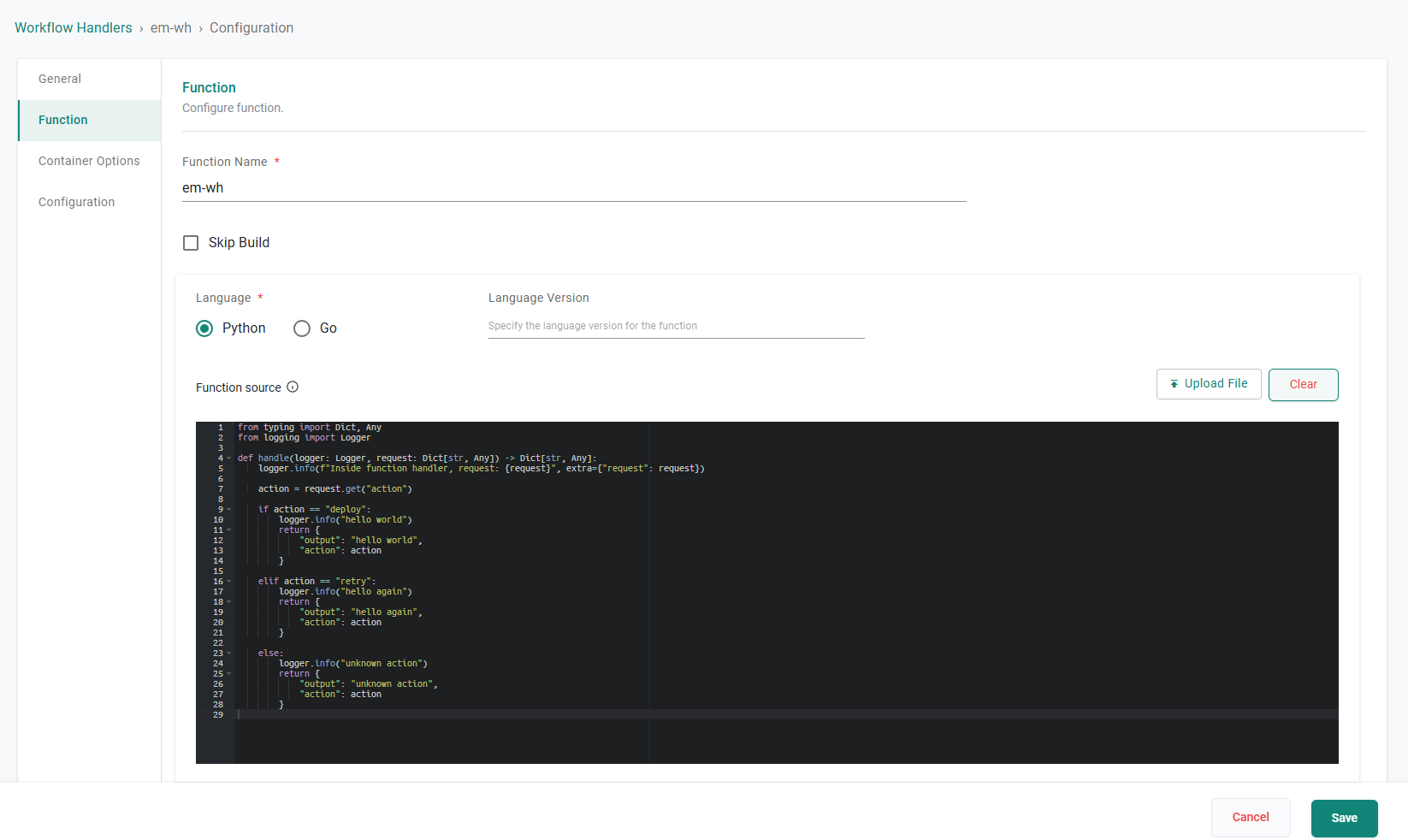

Navigate to Function
Replace the function source code with the below code

from typing import Dict, Any
from logging import Logger

def handle(logger: Logger, request: Dict[str, Any]) -> Dict[str, Any]:
    logger.info(f"Inside function handler, request: {request}", extra={"request": request})

    action = request.get("action")

    if action == "deploy":
        logger.info("hello world")
        return {
            "output": "hello world",
            "action": action
        }

    elif action == "retry":
        logger.info("hello again")
        return {
            "output": "hello again",
            "action": action
        }

    else:
        logger.info("unknown action")
        return {
            "output": "unknown action",
            "action": action
        }

Click Save

Step 2: Update Environment Template¶

In this step, you will update the existing Environment Template to include an Action. The Action will use the same workflow handler, however, now the logic will be controlled by the Action the user selects.

In your project, navigate to Environments -> Environment Templates
Click on the name of the environment template
Edit the template

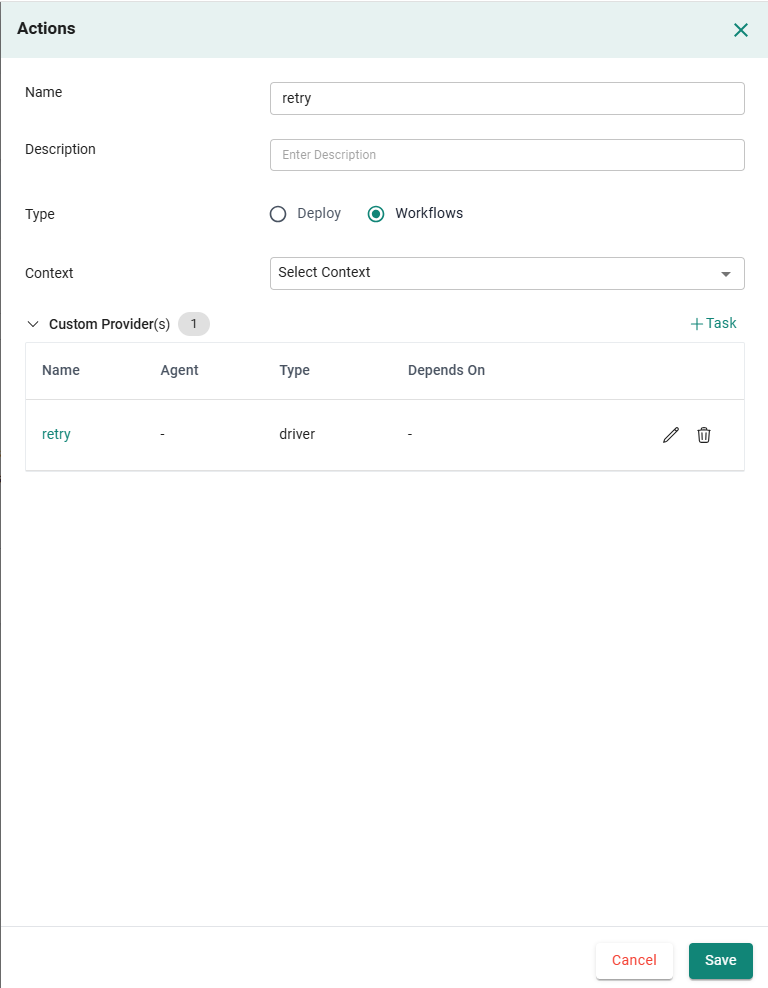

Navigate to Actions
Click + Actions
Enter the name retry. Note, this name is what will be passed as a variable to the workflow handler to determine the logic used.
Select Workflows for the Type
Expand the Custom Providers section

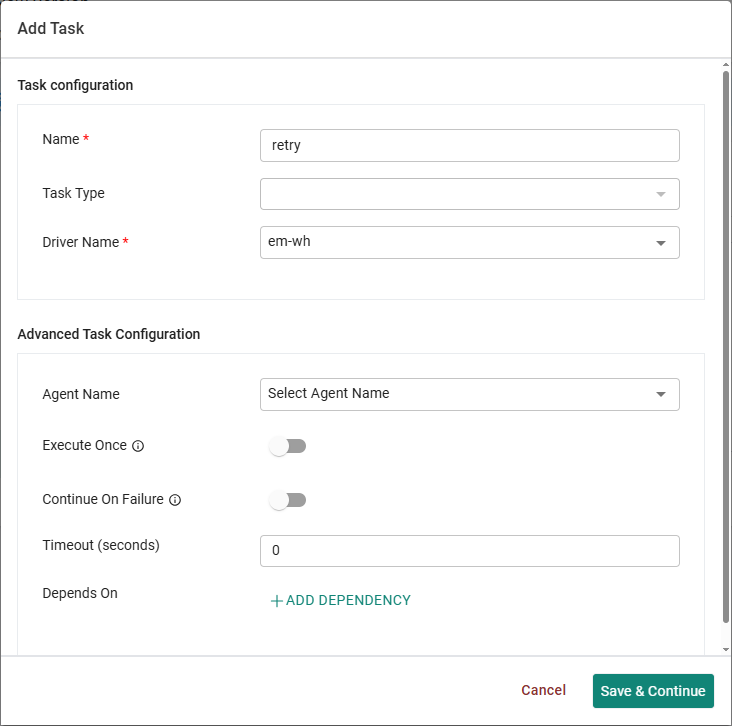

Click + Task
Enter a name for the task
Select the previously modified workflow handler for the Driver Name
Click Save & Continue

Click Save

Next, we will create an input variable that will pass the action value to the workflow handler.

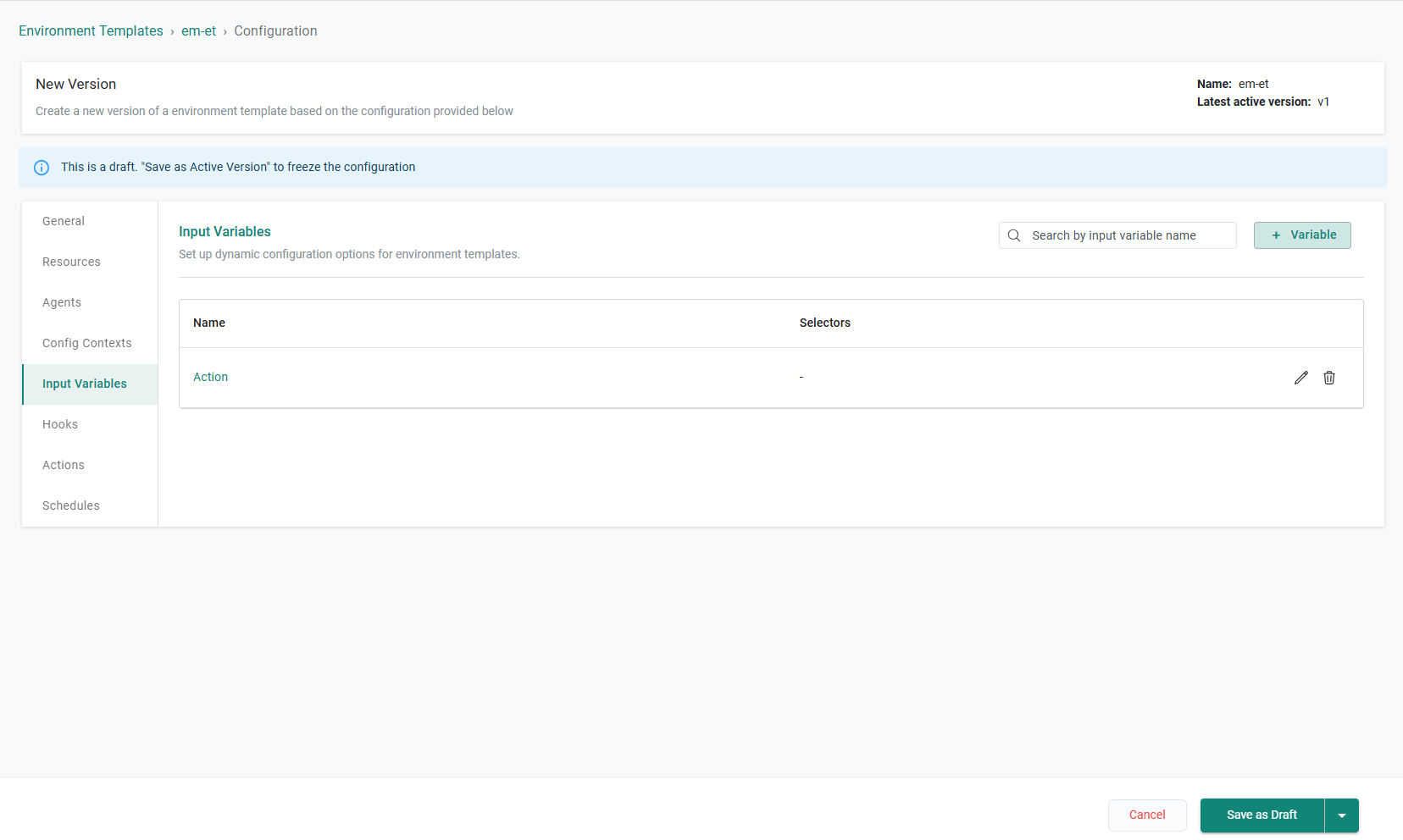

Navigate to Input Variables
Click + Variable
Enter a name for the variable
Select Not Allowed for the Override
Select Expressions for the Value Type
Enter the following code for the Default Value

## script begin ##
def eval(**ctx):
  action_name = ctx["trigger"]["payload"].get("action_name")
  if action_name:
    return action_name
  return ctx["trigger"]["payload"].get("action")
## script end ##

Click Save
Select No, Exit

Note: In the case you want to use a selector to refine where this variable is passed to, you can use environment.action.. to pass the action name to the action

Click Save as Draft

Step 3: Run Action¶

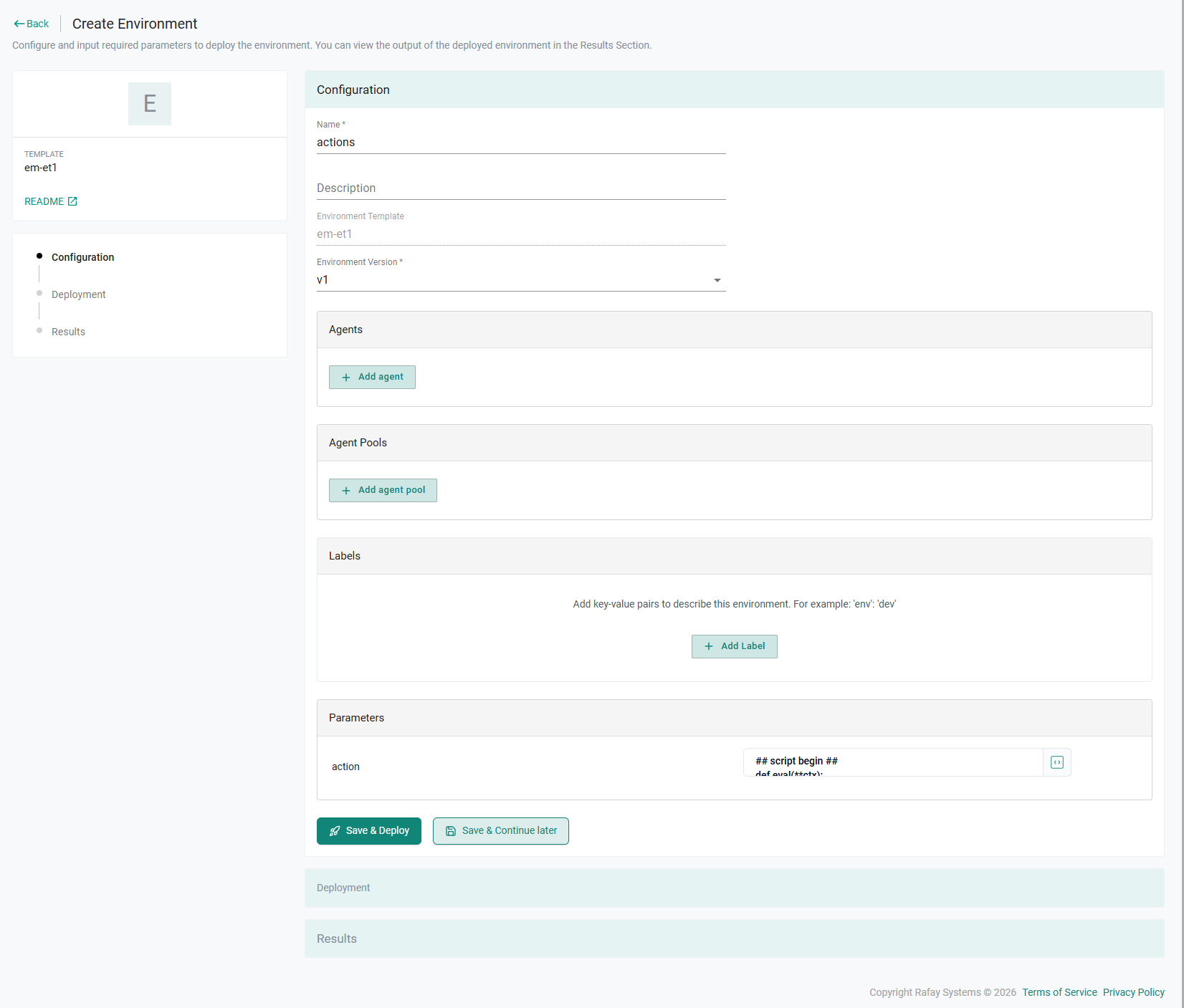

In this step, we will create a new environment using the recently updated environment template. Once the environment is created, we will run the retry action on the environment to see the output that should be displayed from this action.

In your project, navigate to Environments -> Environments
Click Launch on the environment template card
Enter a name for the environment
Click Save & Deploy

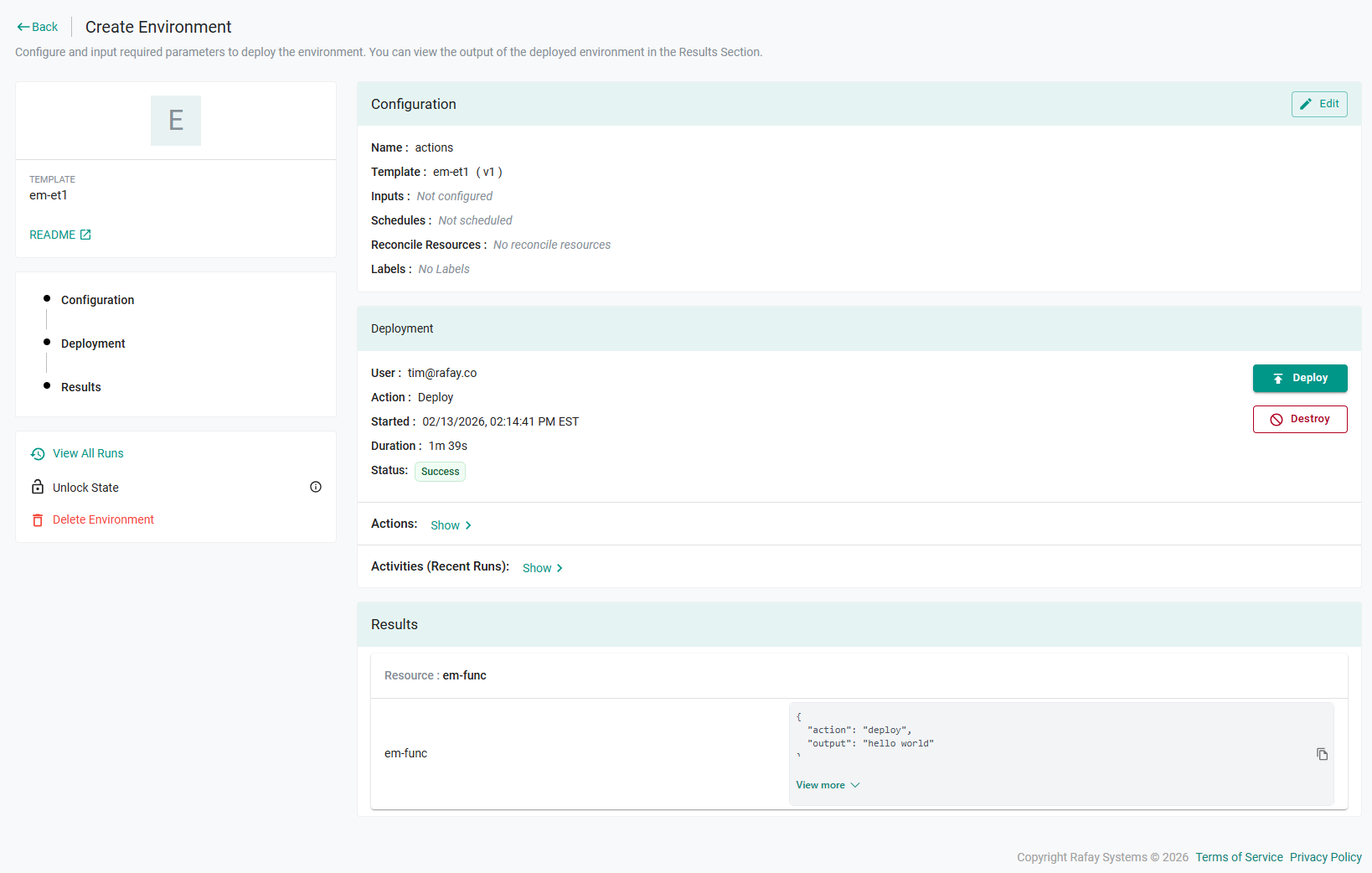

After the environment is created, you will see the results sections shows the "deploy" action and the output "hello world".

Next, you will run the previously created retry action on the environment to produce a different output.

Click Show in the Actions section
Select the previously created retry action
Click Open Action
Click Execute Action

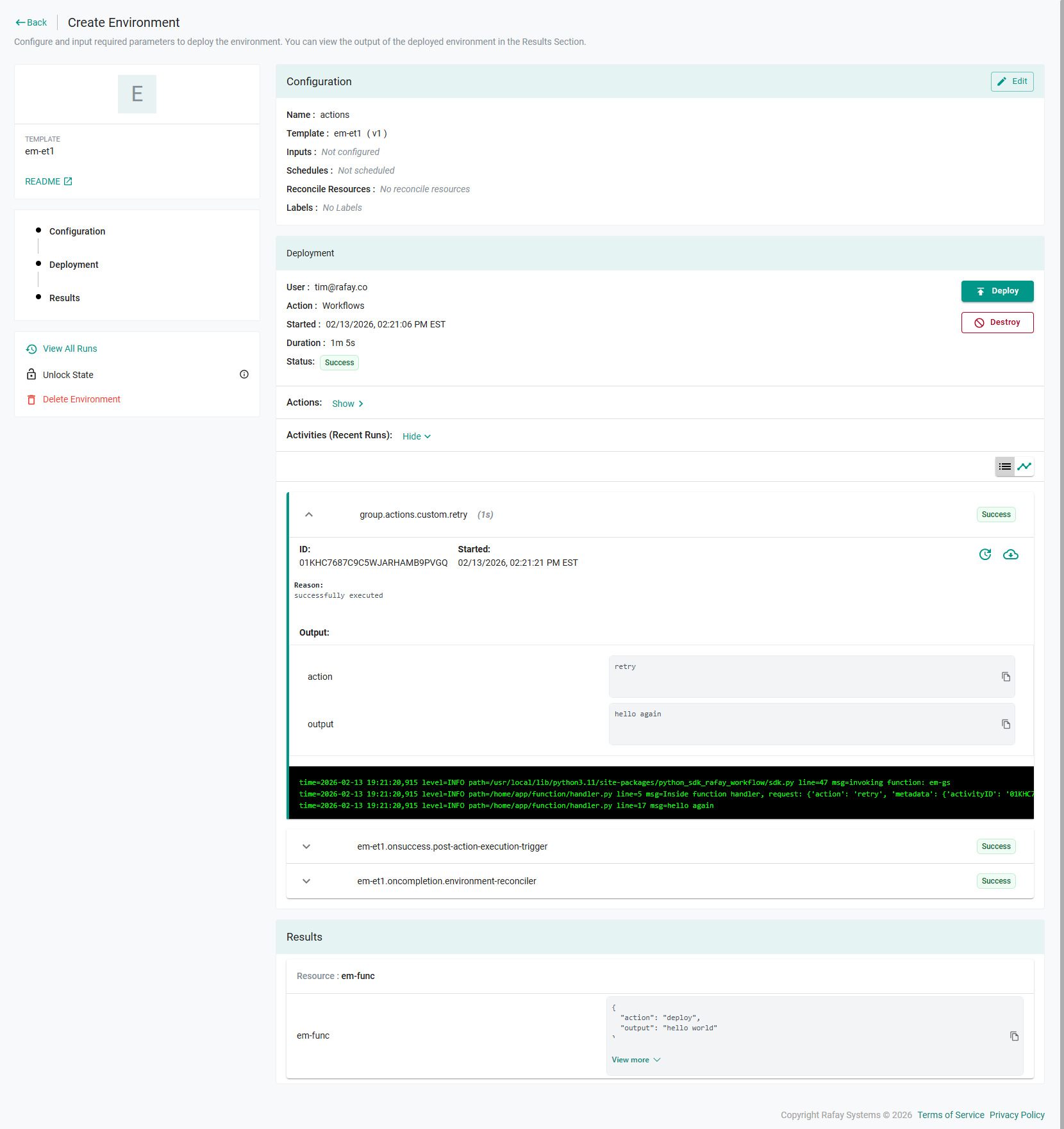

Once the action has finished running:

Click Show in the Activities section
Expand the first section to see the action outputs

You will see the action is not "retry" and the output is "hello again". The output is different as the logic in the workflow handler was set to return this output value if the action was equal to "retry".

Recap¶

In this part, you created an action on your environment template. The action was configured to trigger different logic within the workflow handler.
