k8s YAML

Kubernetes YAML is a human-readable text-based format for specifying configuration-type information. Using YAML for K8s definitions provides a number of benefits to users.

  1. Convenience: Users no longer have to add all of their parameters to the command line.

  2. Maintenance: YAML files can be added to source control, so that changes can be tracked.

  3. Flexibility: Users can create much more complex structures using YAML relative to command line

You can manage the lifecycle of K8s YAML based workloads using the Web Console or RCTL CLI or REST APIs. We strongly recommend that customers automate this either

  • By integrating RCTL with your existing CI system based automation pipeline, OR
  • By leveraging the integrated GitOps capability.

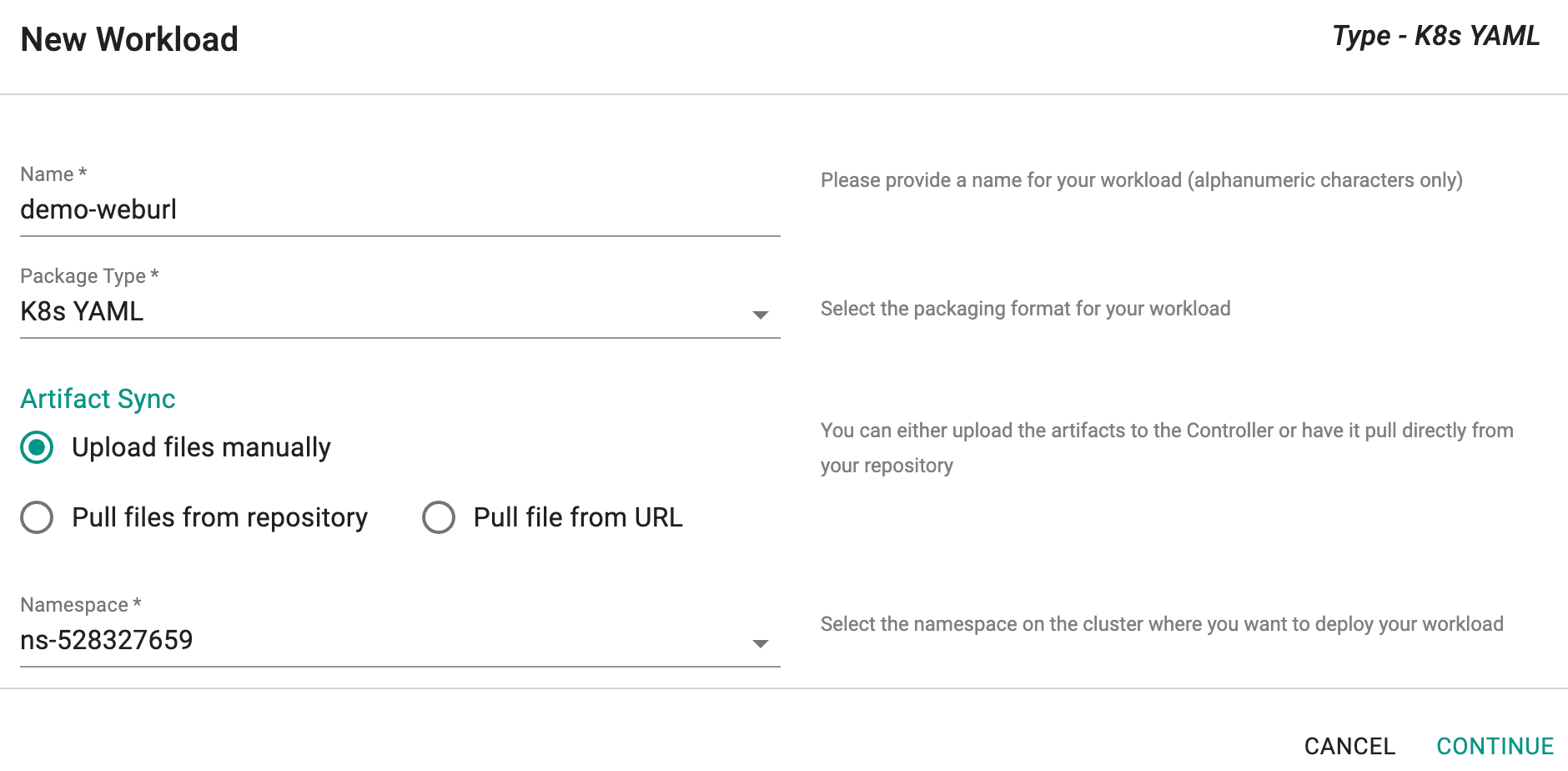

Create Workload

You can create Kubernetes YAML based workloads using the Web Console or the RCTL CLI or REST APIs.

  • Login into the Web Console
  • Click on New Workload
  • Provide a name, select package type as "K8s YAML"
  • Select if you would like to "upload" the artifacts or you would like the Controller to "pull" it directly from a configured repository.
  • Select the namespace where you wish to deploy the workload

Create YAML Workload

Option A: Pull from Repository

This approach requires the user to first select the type of the Git repository. Then, in the next step

  • Select the repository from the dropdown list
  • Select the branch/revision in the Git repo (in this example, master)
  • Specify the path for the YAML file (in this example, nginxyaml/nginx.yaml)

Create YAML Workload-Pull Artifacts

Option B: Upload K8s YAML

For this approach, the user needs to upload the "K8s yaml" file to the Controller. After uploading the file, users are allowed to "download" the configured K8s yaml file if they wish to view it.

Configure YAML Workload

Publish Workload

  • Selecting the placement policy for the workload
  • Publish the workload

Publish YAML Workload

Unpublish

To unpublish the workload, click on the "unpublish button". The deployed resources on the remote clusters will be automatically removed.

Important

If the remote cluster was offline when the unpublish operation was initiated, the Controller will send this instruction to the cluster when it reconnects.

Pod Metrics

To have the managed prometheus addon scrape pod metrics, add the following annotations to the pods with these parameters

metadata:
  annotations:
    prometheus.io/scrape: "true"
    prometheus.io/path: /metrics
    prometheus.io/port: "8080"
spec:

Adjust the prometheus.io/path based on the URL from where the pod serves metrics. Set prometheus.io/port to the port from where the pod serves metrics. The values for prometheus.io/scrape and prometheus.io/port must be enclosed within double quotes

Important

The collected metrics in Prometheus will be retained for 3 hours

Actions

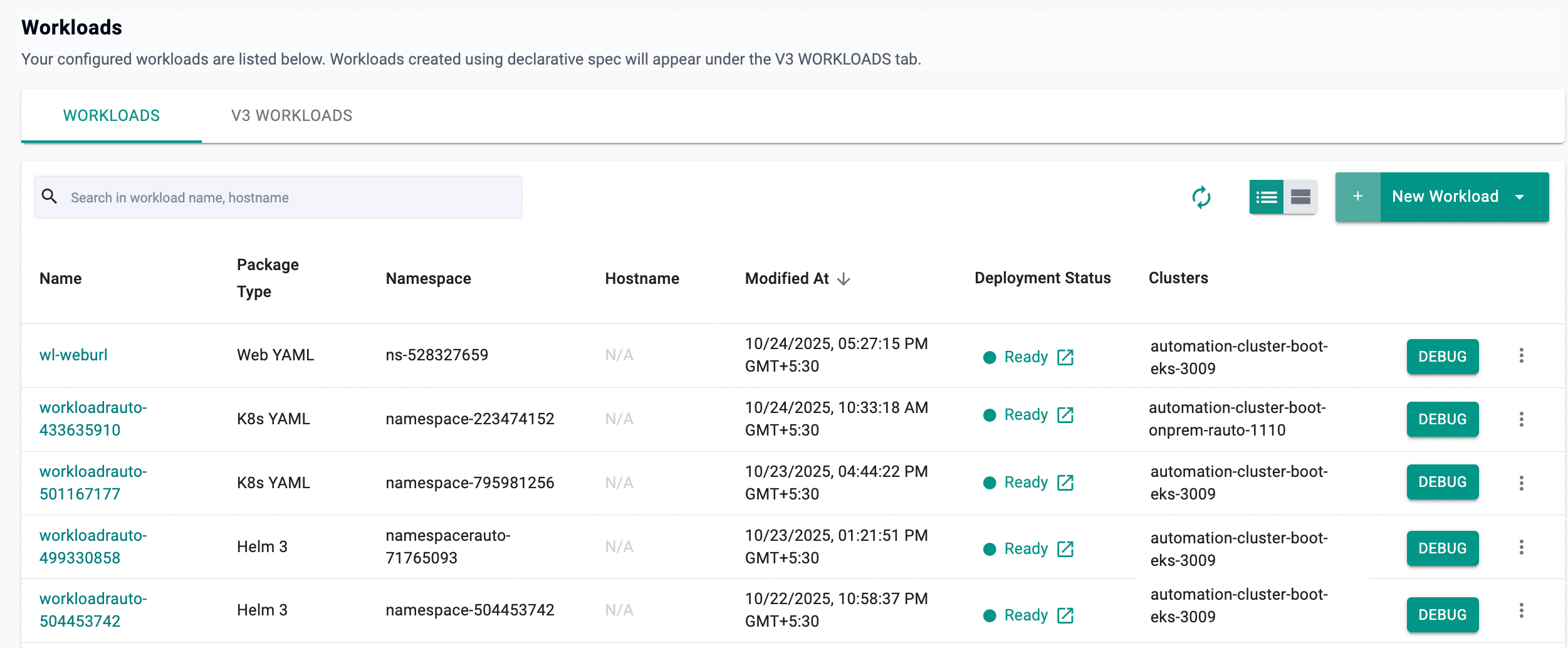

Edit or delete one (or) more workload(s) using the respective icons from the main workloads list page. Follow the prompts to delete a workload.

Helm Releases

Note: When modifying a published workload, republish it

Debug

At anytime during or after deployment, users can view the status and other information about their workload's K8s resources by clicking on Debug.

Debug YAML Workload
