OpenID Connect (OIDC) Integration

Follow the steps documented below to integrate your Org with an OIDC-compliant Identity Provider (IdP) such as Okta for Single Sign On (SSO).

Important

Only users with "Organization Admin" privileges can configure SSO in the Web Console.

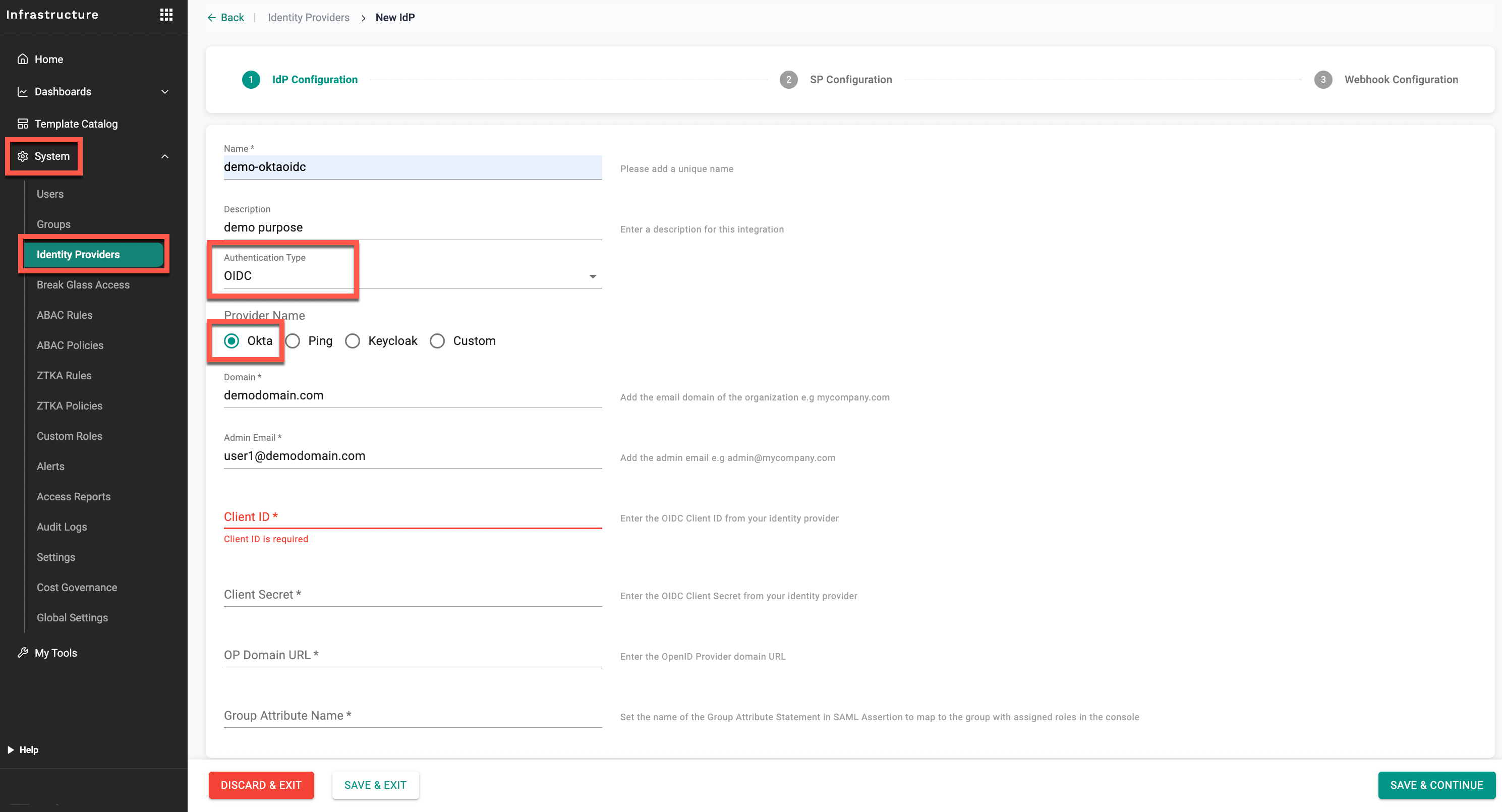

Step 1: Create IdP in Web Console¶

Log in to the Web Console as an Organization Admin.
Navigate to System → Identity Providers.
Click New Identity Provider.
In the IdP Configuration tab, provide a unique name for the Identity Provider.
Optionally, enter a description for reference.
Select OIDC as the Authentication Type.
Choose Okta as the Provider Name.
Enter the Domain associated with the organization (for example, mycompany.com).
Provide an Admin Email ID (for example, admin@mycompany.com).

Important

Within an organization, both the IdP Name and Domain must be unique. A domain used in one organization can be reused in a different organization.
The Domain and Admin Email’s domain must match. For example, if the domain is mycompany.com, the admin email must belong to the same domain (for example, admin@mycompany.com).

At this point, the configuration cannot be saved or continued further. The remaining fields: Client ID, Client Secret, OP Domain URL, and Group Attribute Name must be populated after configuring the corresponding Okta application and retrieving these details from Okta.

Once these values are available, return to this page, complete the remaining fields, and then proceed with the setup.

Step 2: Configure OIDC App in Okta¶

Login into your Okta Org as an Administrator

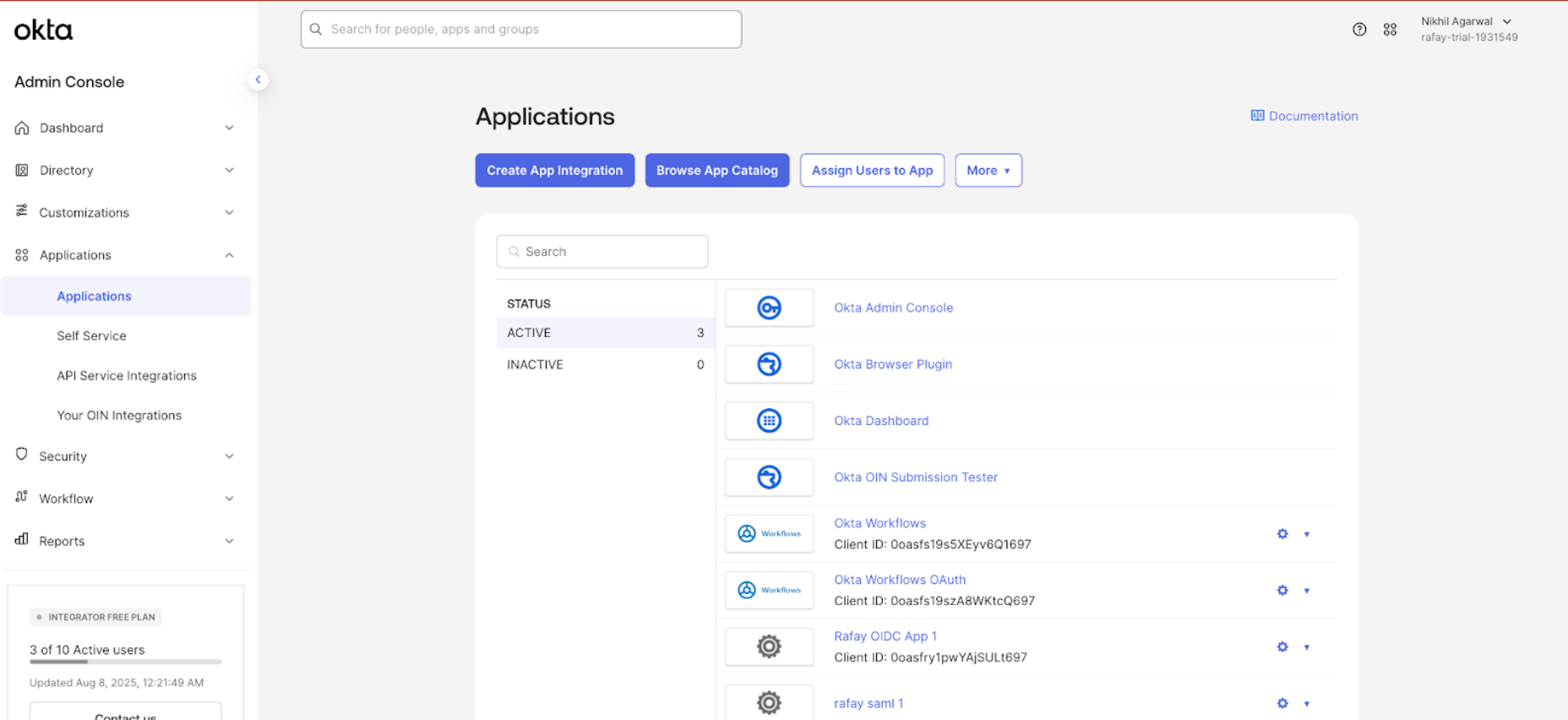

Navigate to Applications → Applications and click Create App Integration

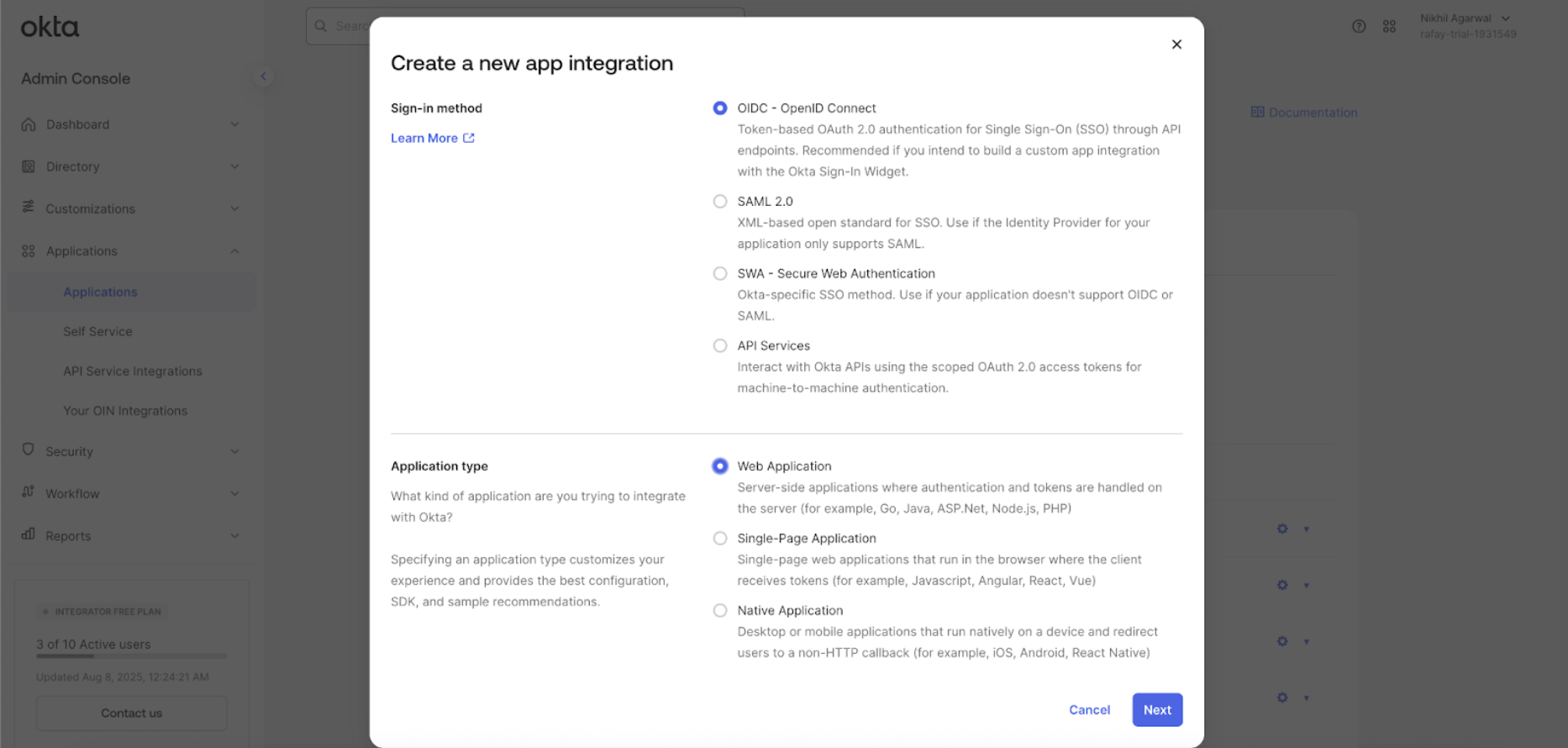

Select Sign-in method: OIDC – OpenID Connect
Select Application type: Web Application and click Next

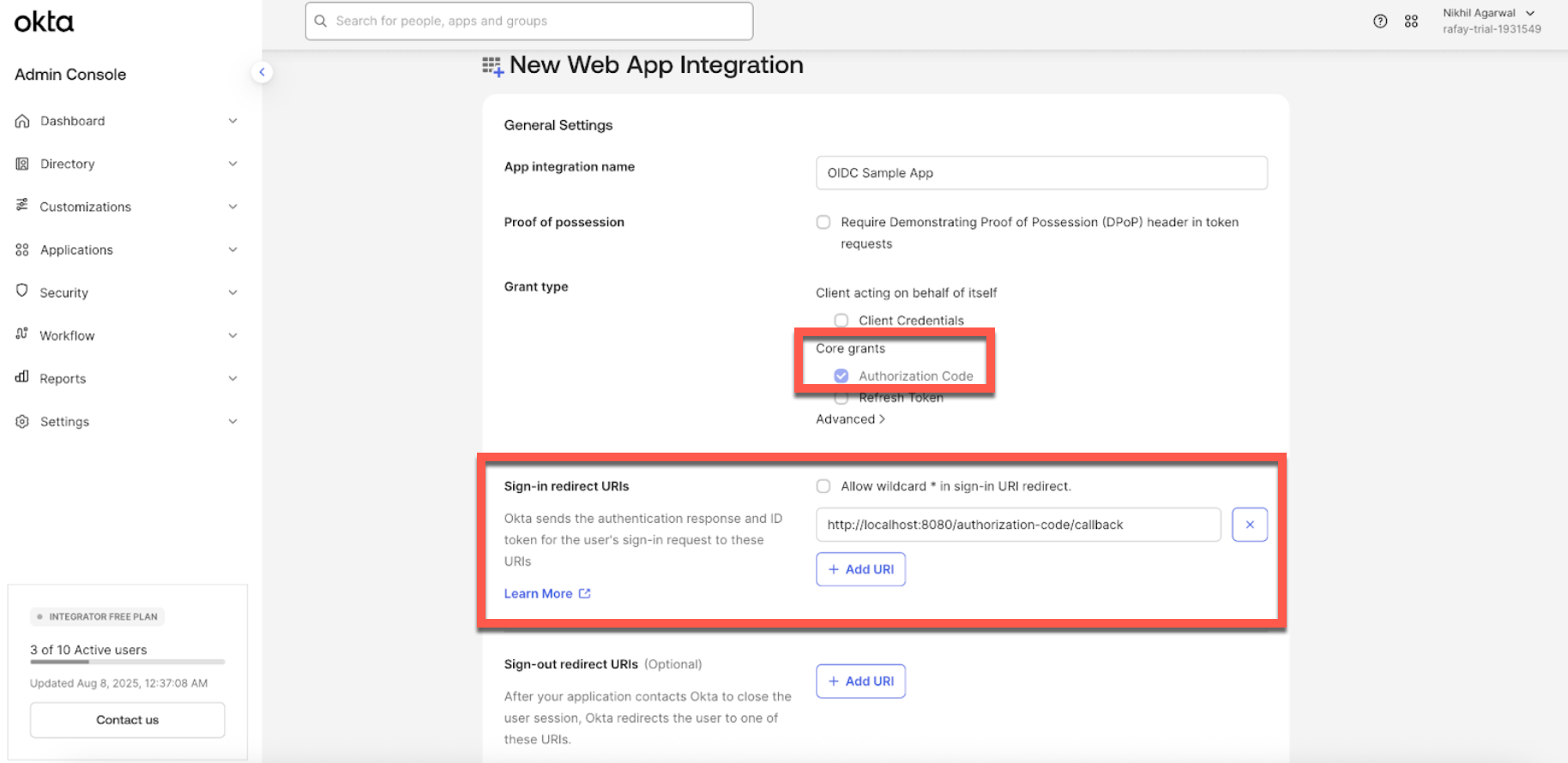

Provide an App Integration Name
Select Authorization Code as the grant type
For Sign-in redirect URIs, enter a placeholder (this will be updated later from Web Console)

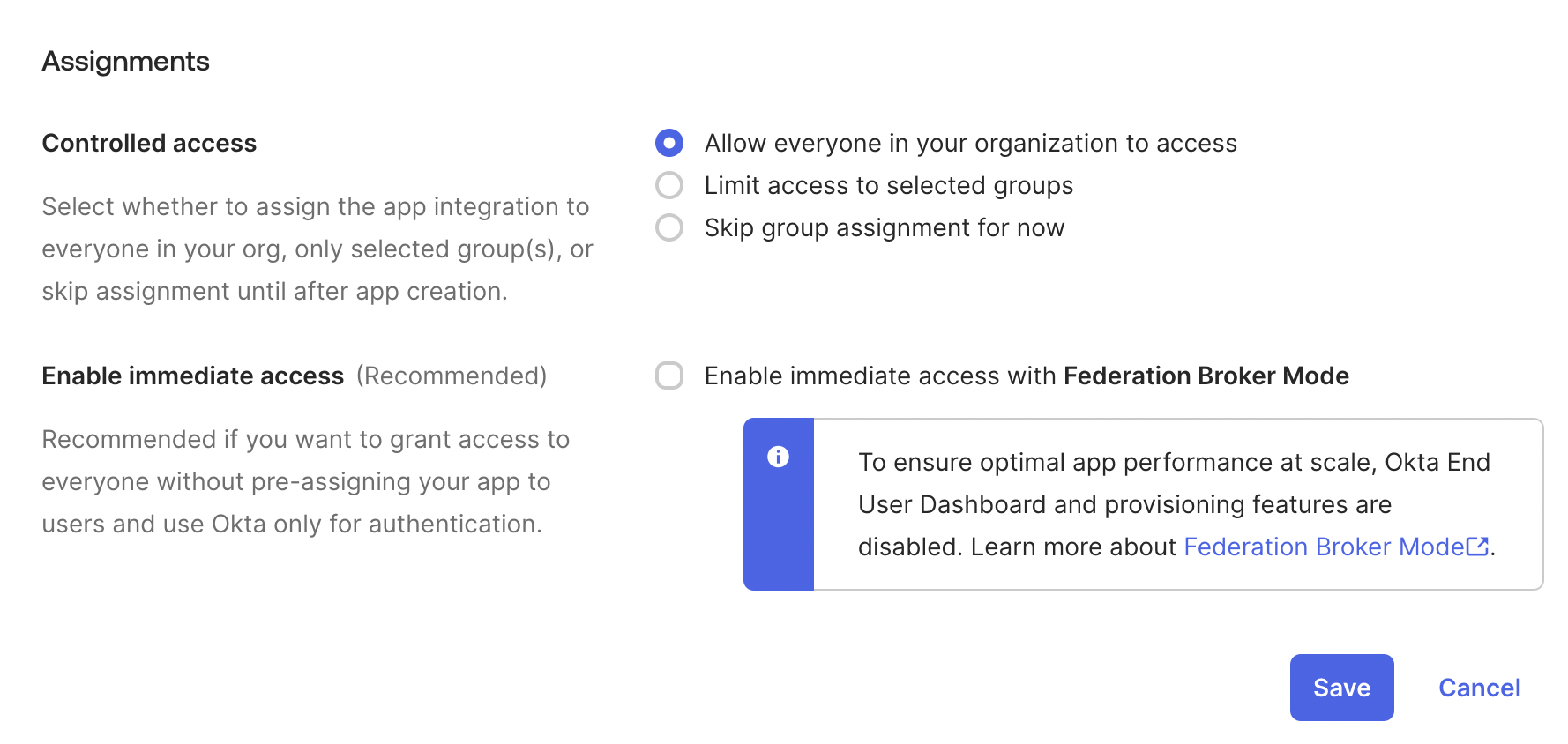

Make the required Assignments and disable the Federation Broker Mode.
Click Save.

Step 3: Capture Client Credentials¶

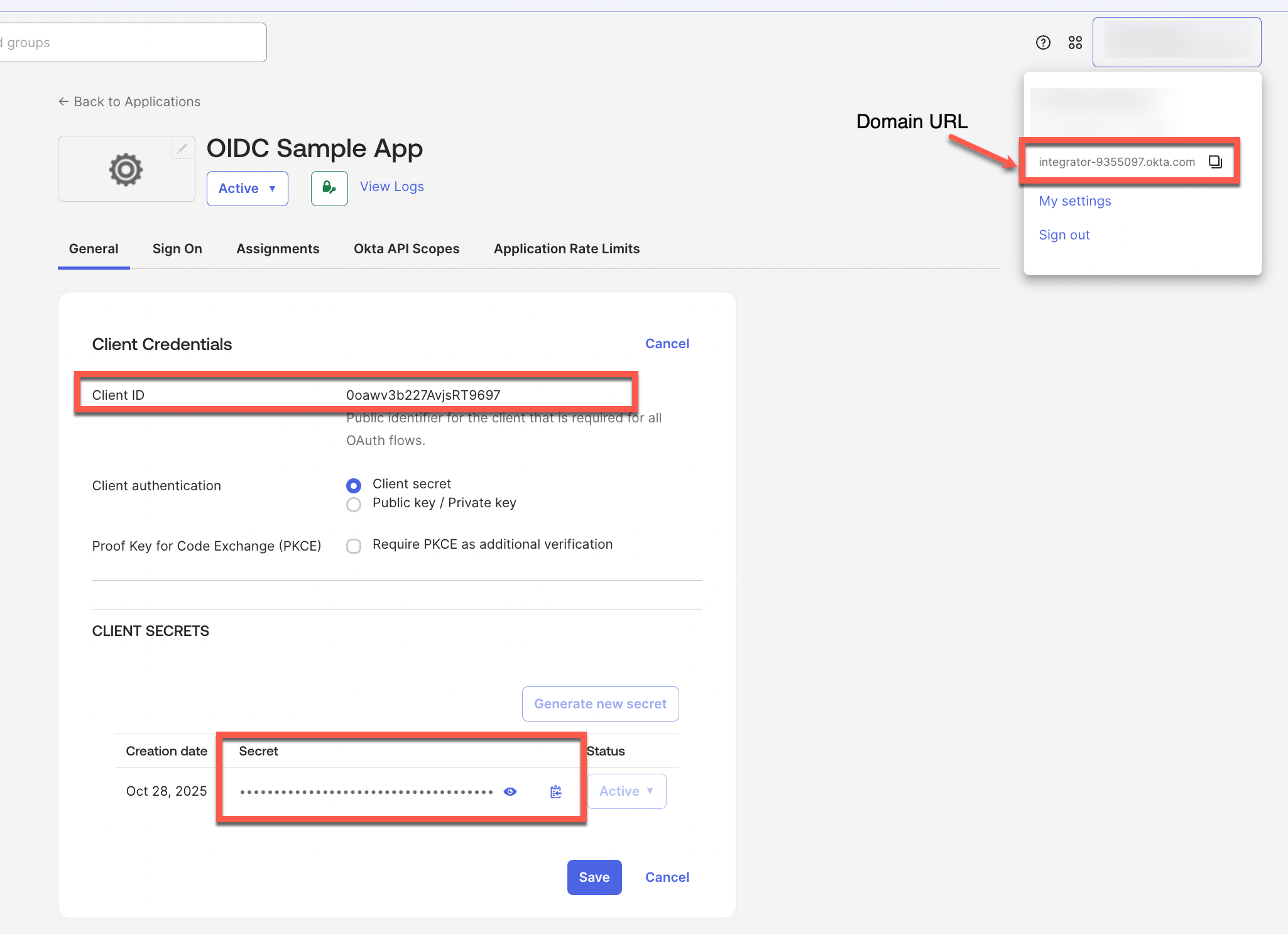

Copy the Client ID, Client Secret, and OP Domain URL from the below page
Enable PKCE if required

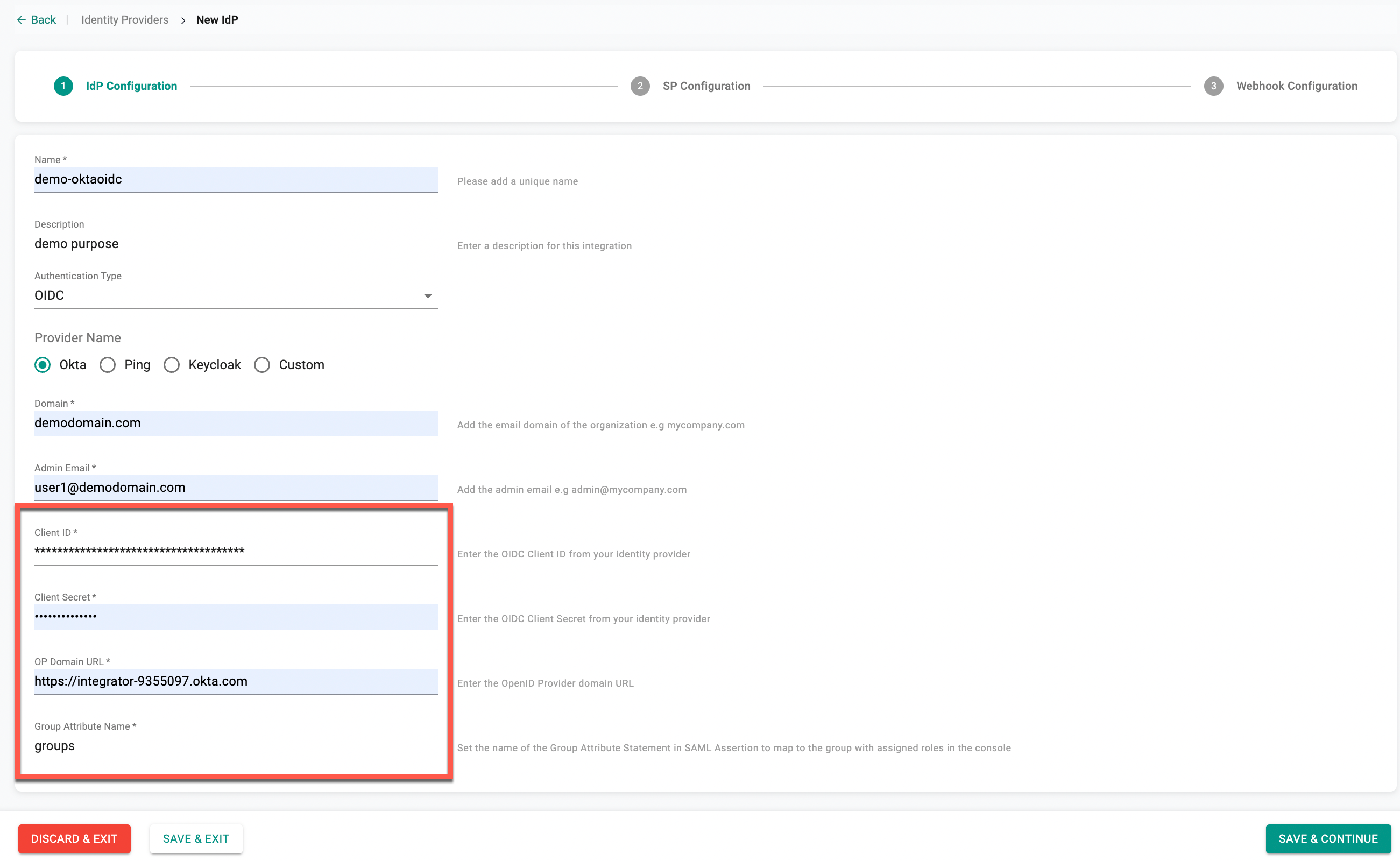

Paste these values into the Console configuration page
Provide the Group Attribute Name and save the IdP configuration

🚨 Important: Ensure that the OP Domain URL includes the protocol prefix — http:// or https:// — to make it a valid URL. The process cannot proceed without a properly formatted URL.

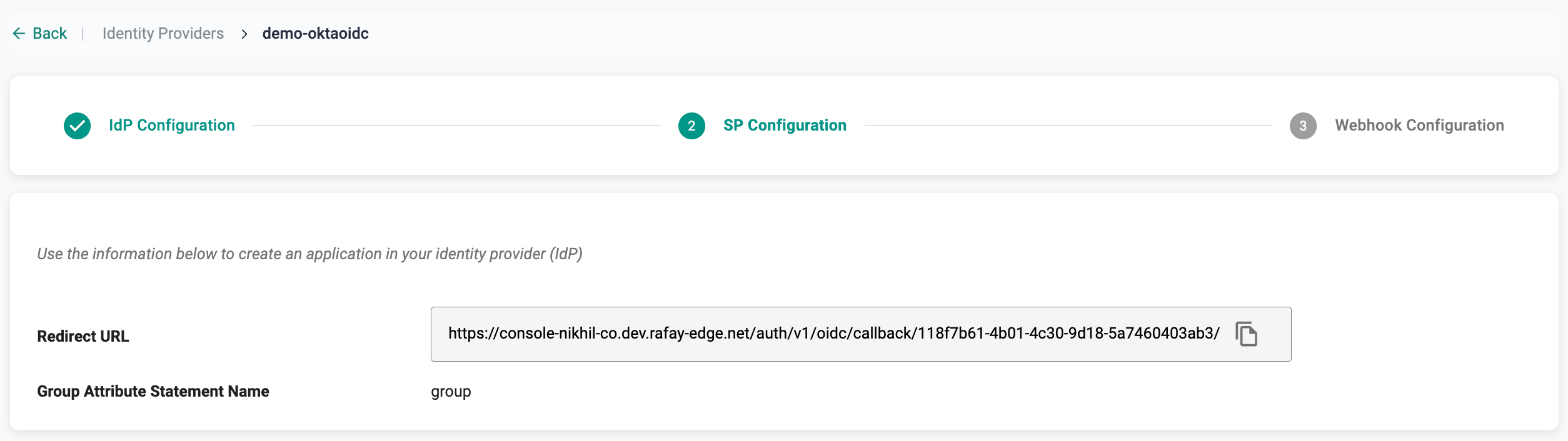

Copy the Redirect URL generated by the web console to update it in Okta

Paste the URL under General Settings → Login → Sign-in redirect URIs as shown below

Once saved, the OIDC app is configured in OKTA.

Step 4: Webhook Configuration (Optional)¶

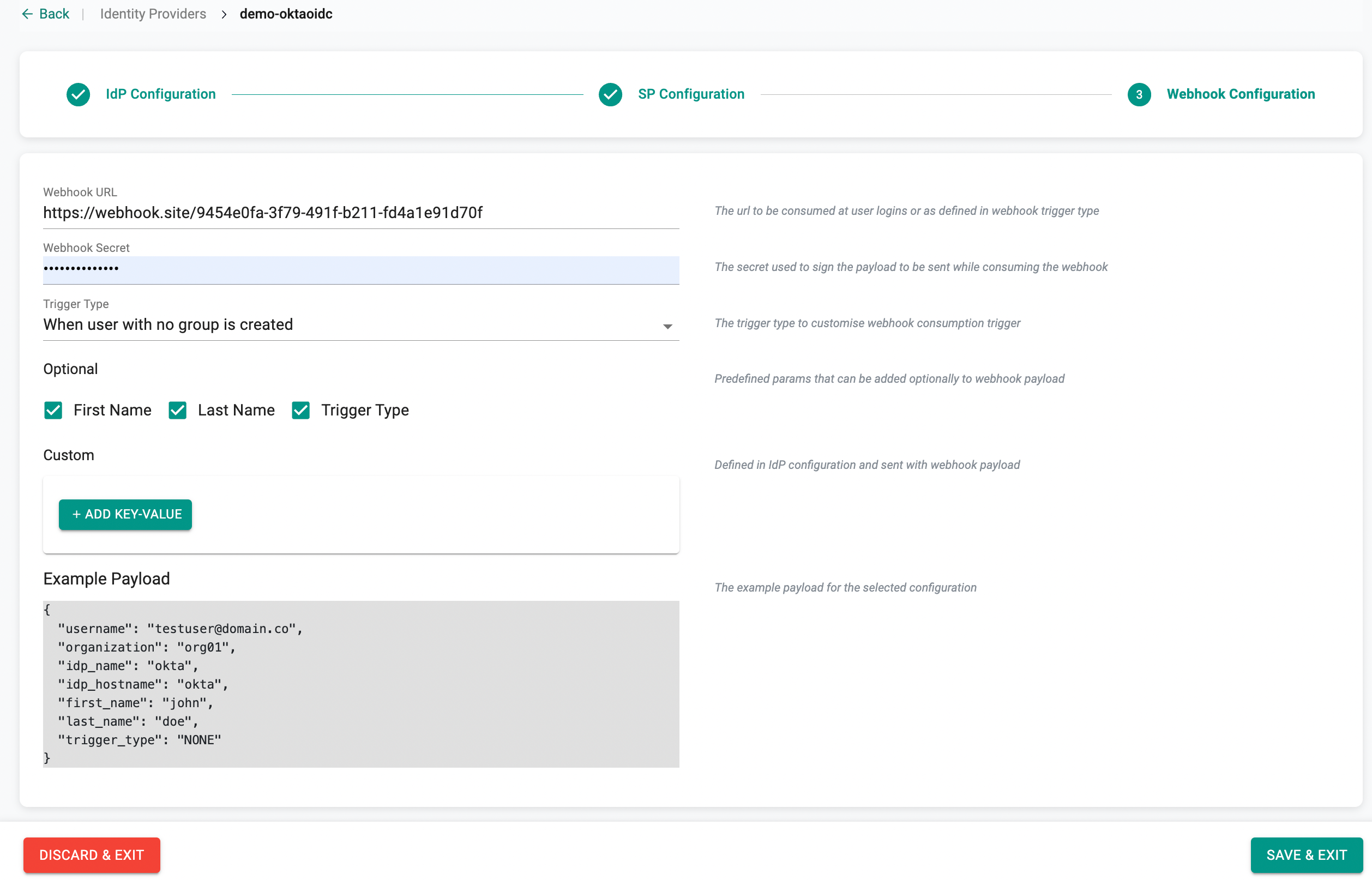

In the Web Console, configure the webhook if required, and click Save & Exit.

Once the configuration is complete, a verification email is sent to the admin email ID specified on the IdP Configuration page. The verification must be completed to enable SSO login using the configured OIDC app.

Step 5: Configure Group Claims in Okta¶

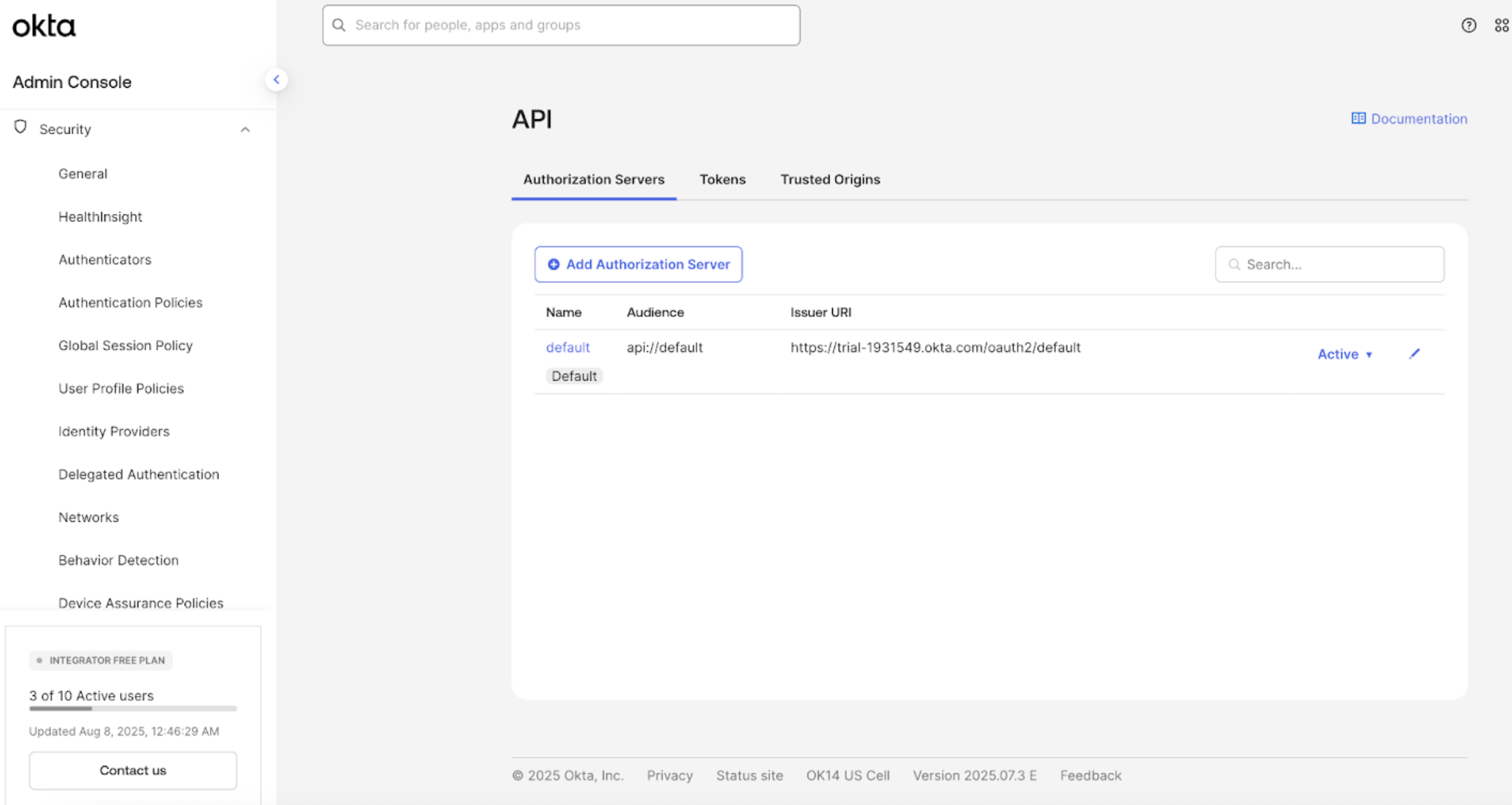

Navigate to Security → API

Select Default and click on the Claims tab
Click Add Claim

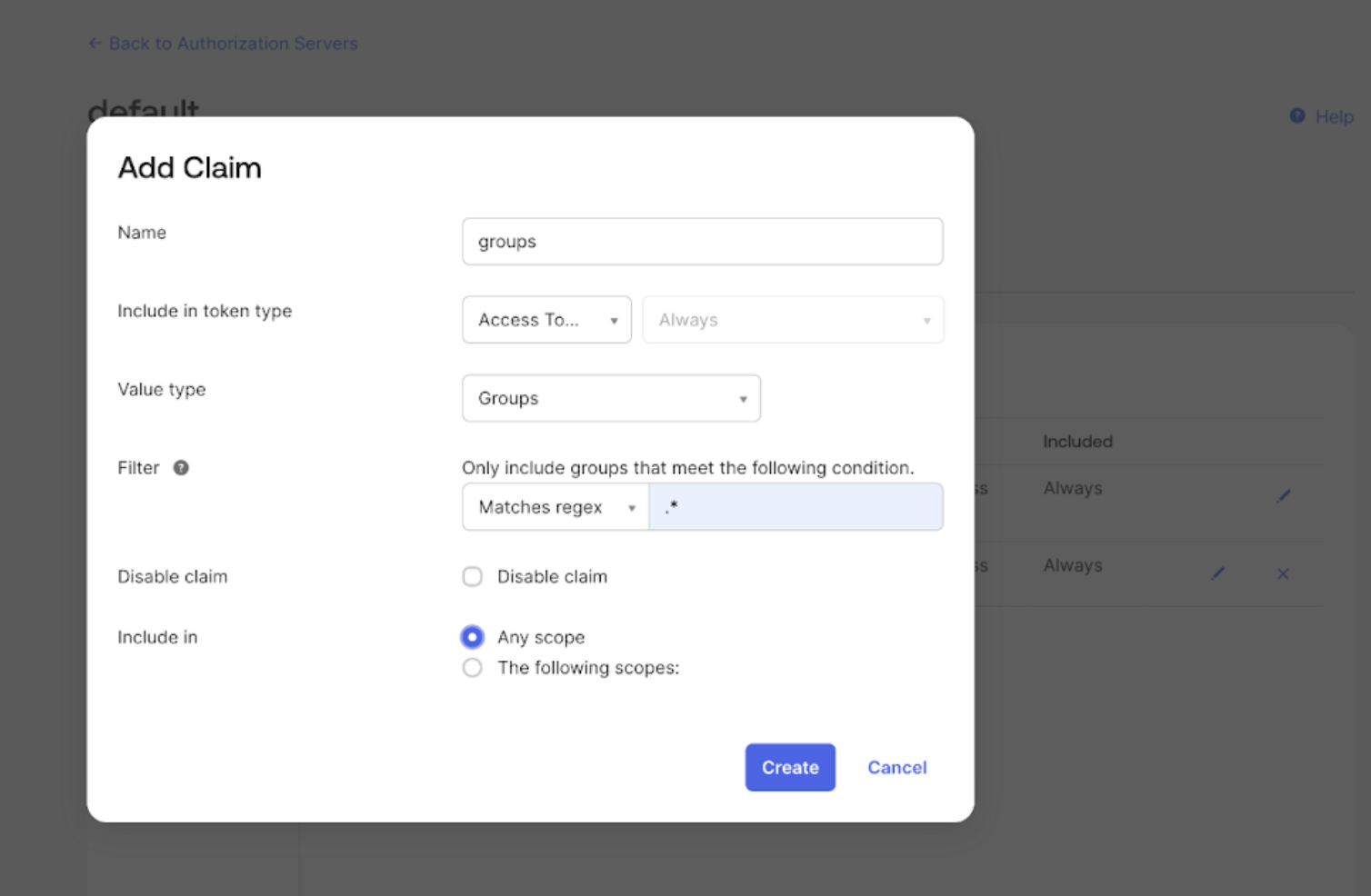

Provide the claim details as shown in the screenshot below

Important

The Claim Name must exactly match the Group Attribute configured in the Web Console.

Click Create

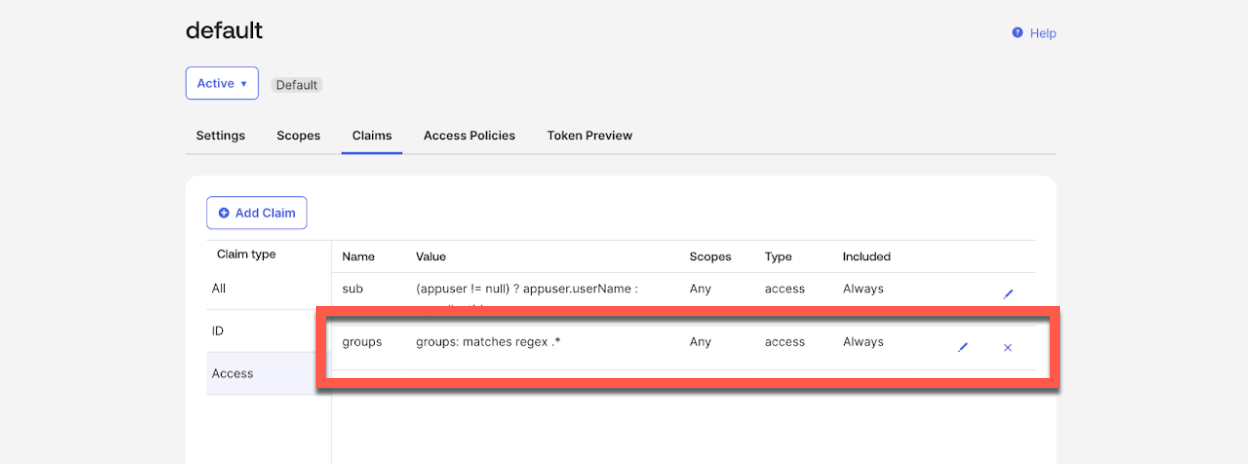

After configuring, the groups claim appears under the Claims tab in the authorization server.

The groups claim maps the user’s group memberships using a regular expression defined in the Value field. This ensures that only the matching groups are passed in the ID token during authentication.

Make sure the Claim Name for groups matches the name specified in the OIDC configuration at the time of creation or update.

Step 6: Configuring Access Policies¶

Access policies define the rules and conditions that determine how users can access an OIDC application. These policies help control authentication behavior and client-level access.

Navigate to Access Policy Settings¶

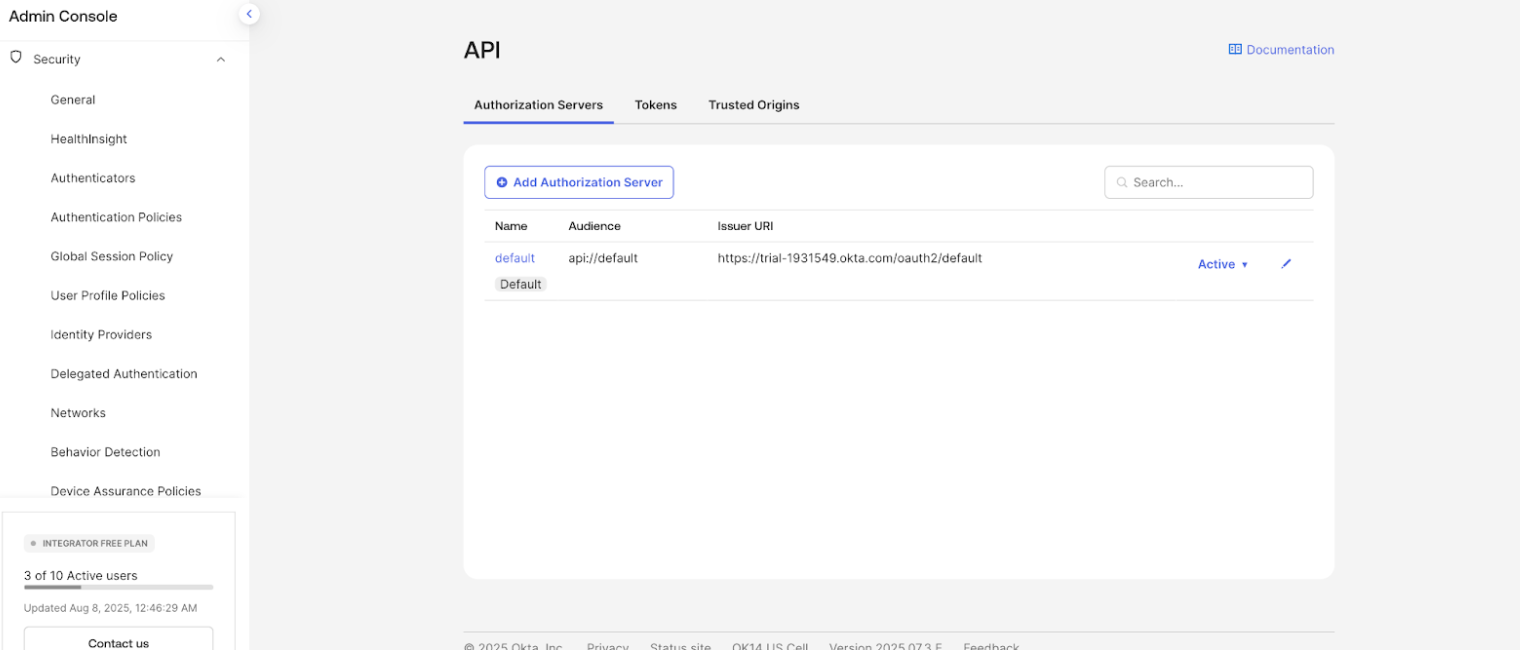

In the Okta Admin Console, go to Security → API.
Click on the default authorization server to open its configuration.

Create a New Access Policy¶

Select the default authorization server.

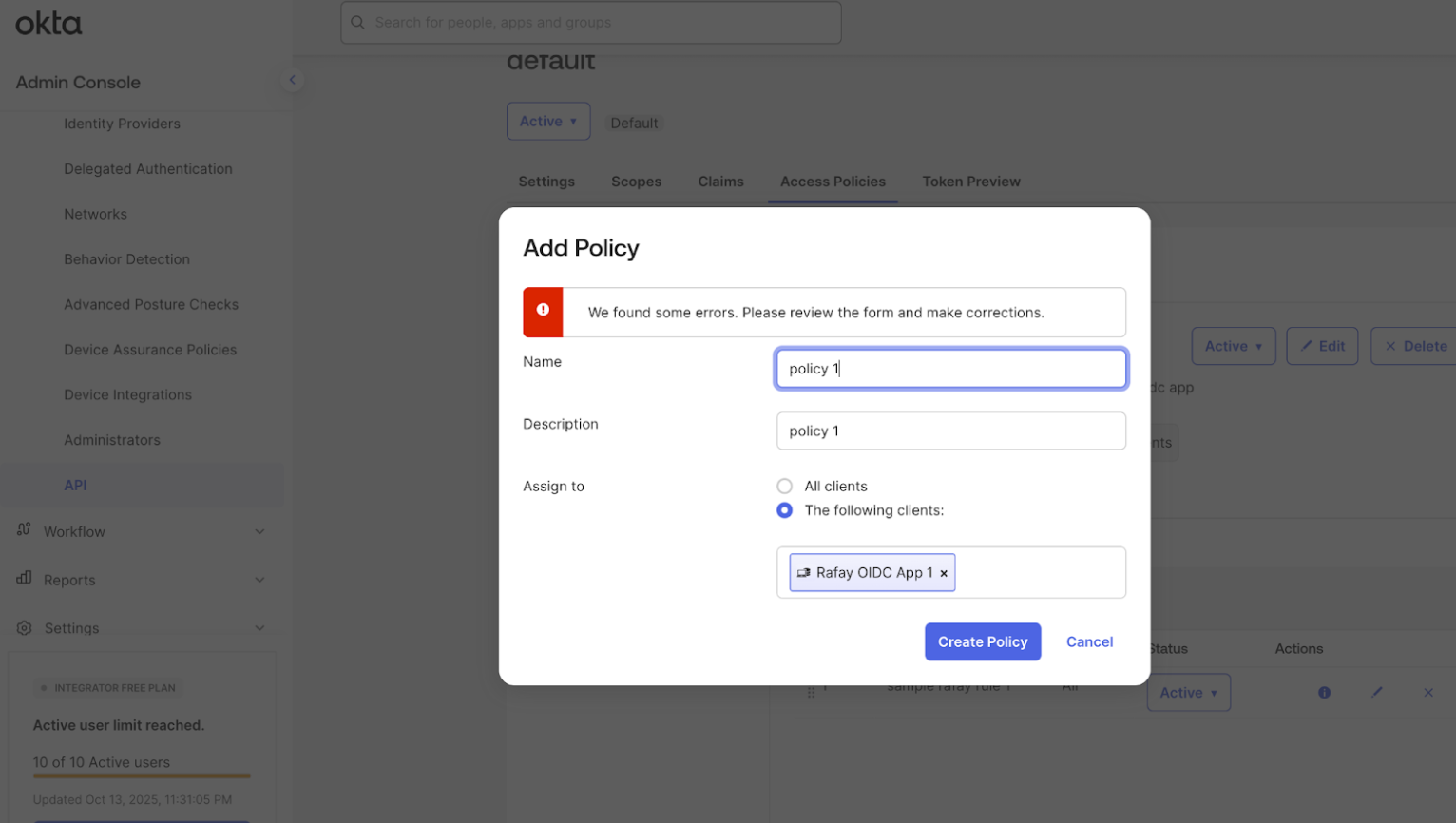

Click on the Access Policies tab and then select Add Policy.
In the Add Policy dialog:
- Enter a Policy Name and a Description.
- Under Assign to, choose one of the following:
  - All clients to apply the policy globally.
  - The following clients to restrict the policy to specific OIDC apps by selecting the app name.
Click Create Policy to save the configuration.

Step 7: Add a rule to the policy¶

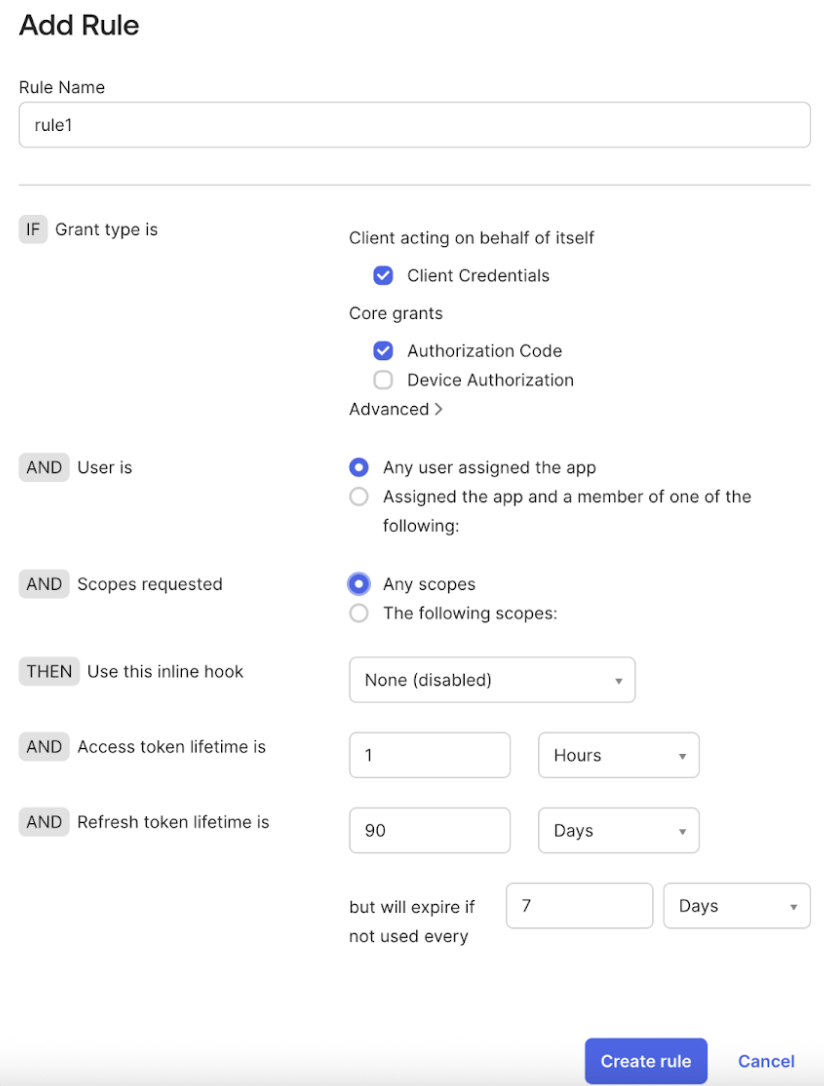

Once the policy is created, click Add Rule.

Enter the details to define the grant type, user assignments, scopes, and token lifetimes. Once all required fields are configured, click Create rule to add the rule to the policy.

Troubleshooting¶

Scenario 1: User Not Assigned to OIDC Application¶

Description:

The IdP is configured and verified in the Web Console. The OIDC app is created and configured in Okta, but the user is created without being assigned to the OIDC application.

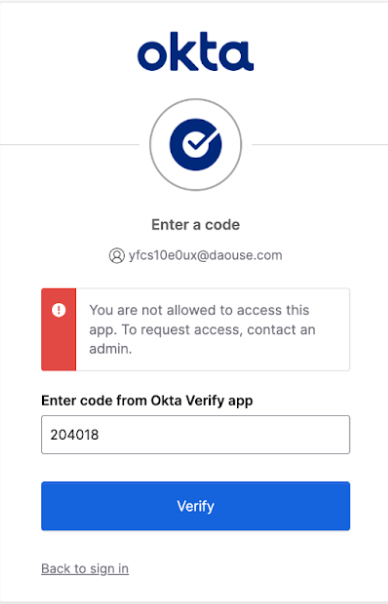

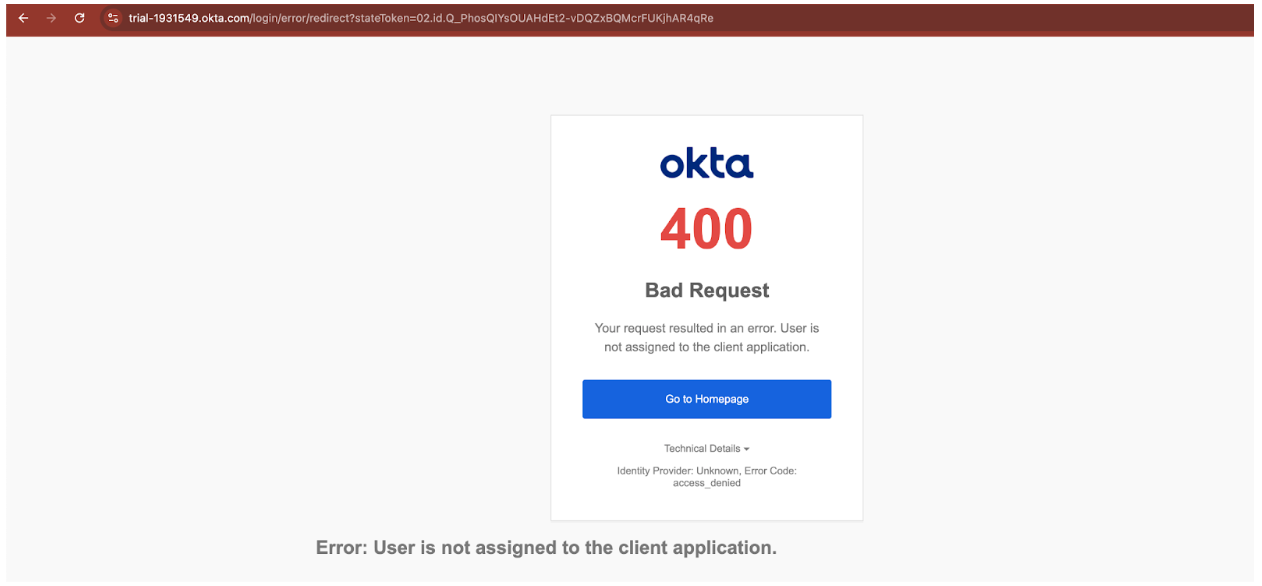

Error Message:

Resolution:

Assign the user to the correct OIDC client application in Okta.
If the same error appears even after assignment, verify that the user is assigned to the right client application.

Scenario 2: Access Policy Not Configured¶

Description:

The user is assigned to the OIDC application, but no access policy or rule is configured in Okta.

Error Message:

Resolution:

Create and configure the required access policy and rule for the application in Okta.
Once configured, the error is resolved.

Scenario 3: Groups Claim Not Configured or Mismatched¶

Description:

The groups claim is not configured, or it is configured with a name that does not match the group attribute name.

Effect:

The Web console shows that the user is not part of any group and access is denied.

Resolution:

Configure the group claim in Okta with the correct attribute name.
Once the group claim matches the group attribute in Web Console, the user can access the application successfully.
