Draft Versions

Draft Versioning for Blueprints and Add-ons

The platform now supports marking Blueprint and Add-on versions as โ€œDraftโ€, enabling more flexible and controlled version management during development and testing.

Key Benefits

  • Iterative Editing: Platform teams can iteratively modify Draft versions during validation without creating multiple versions. Once finalized, the version can be marked Active. Previously, any change required a new version, leading to version sprawl.
  • Scoped Visibility: Draft versions are project-scoped, they are only visible within the parent project and not shared downstream, ensuring only vetted, Active versions are exposed to other projects.
  • Immutability of Active Versions: Once a version is marked Active, it becomes read-only. The Edit option is exclusive to Draft versions.

โš ๏ธ Note: The Disable state is available only for Blueprints, not Add-ons.

Version States and Behavior

State Behavior
draft Editable, visible only in the parent project, not shared with child projects
active Immutable; only Active versions are accessible when shared across projects
disable Immutable; not usable for new use but does not affect existing clusters using the version

Validation Rules by Type and State

Type State Validation Rules
Custom Blueprint Active Cannot use Draft add-ons or Draft Golden BPs as base
Custom Blueprint Draft Can use Active or Draft add-ons; base Golden BP must be Active
Golden Blueprint Active Cannot reference Draft add-ons
Golden Blueprint Draft Can reference Active or Draft add-ons

โ„น๏ธ Golden Blueprints are used when the Platform team defines a core set of add-ons that must be deployed across all clusters, while allowing downstream teams or projects to extend them by layering additional add-ons. However, because Draft versions are not shareable across projects, a Golden BP marked as Draft cannot be used as a base blueprint in Custom BPs.


Version Management via UI

Note: UI-based configuration of Draft versions will be available in the 3.7 release.

Add-Ons Version Management

  • On the New Blueprint Version page, after entering the required details, click Save As and choose either Save as a Draft or Save as an Active Version
  • Click Save

Blueprint Version Management

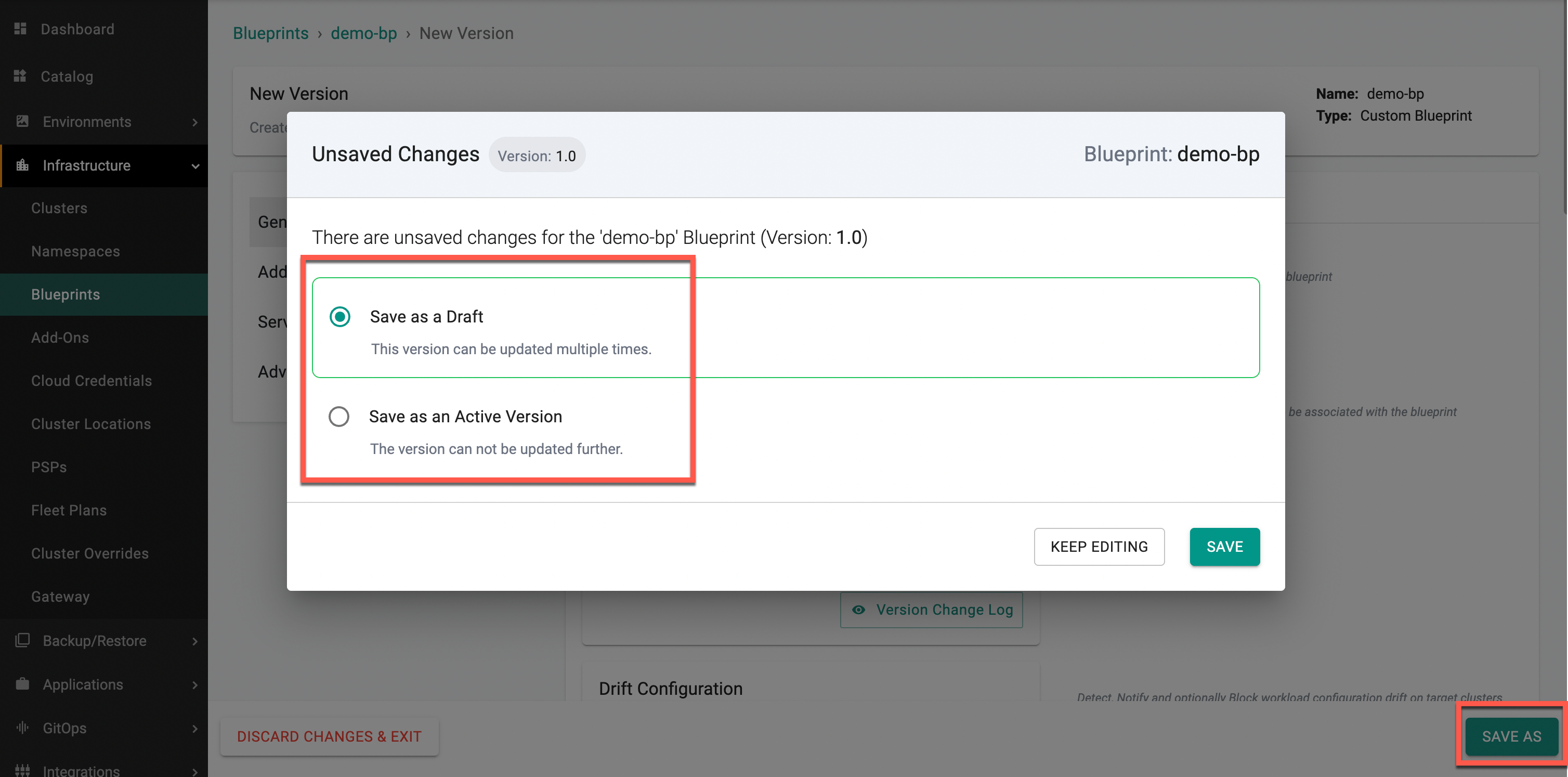

  • On the New Blueprint Version page, after entering the required details, click Save As and choose either Save as a Draft or Save as an Active Version
  • Click Save

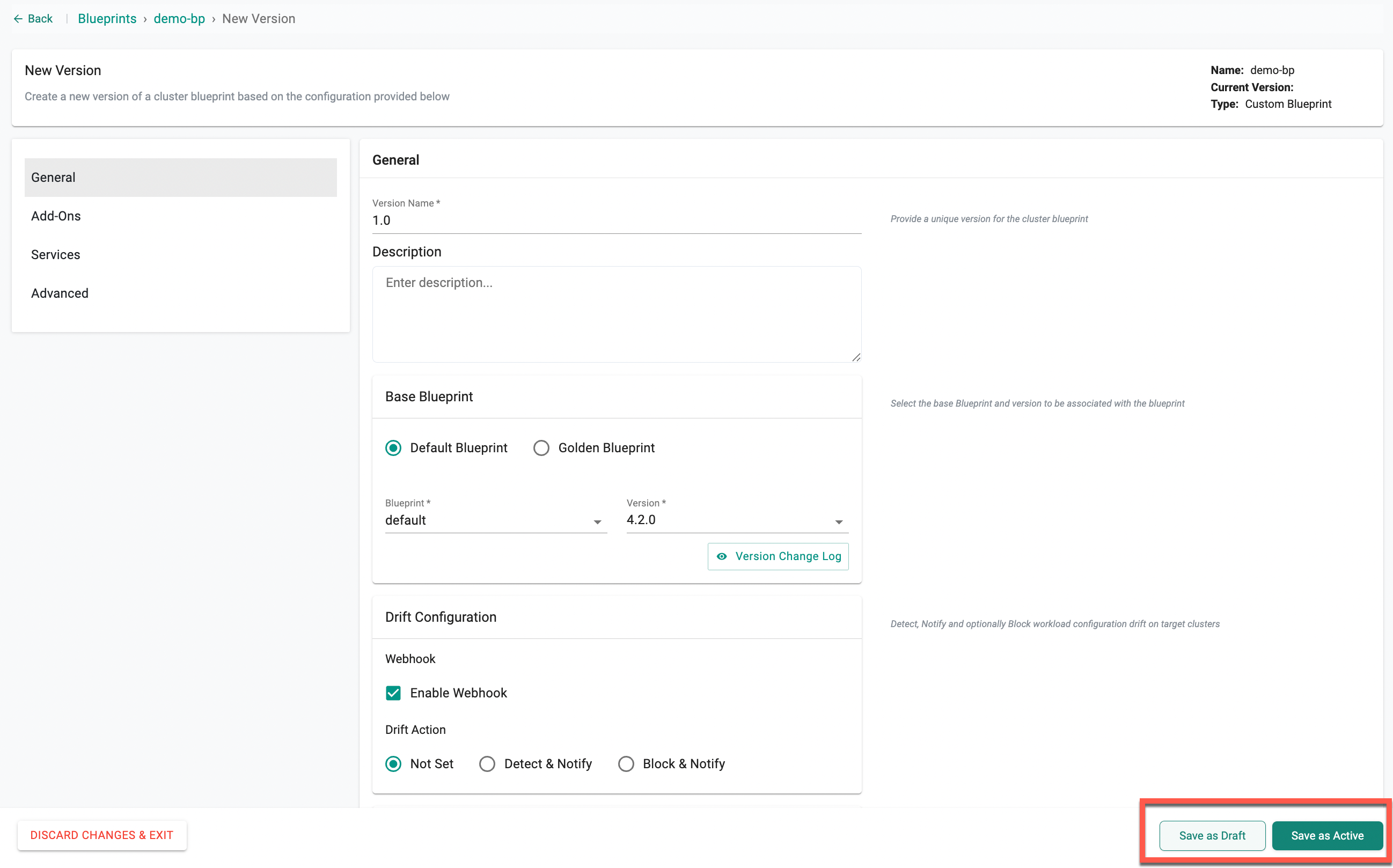

Save Blueprint Version

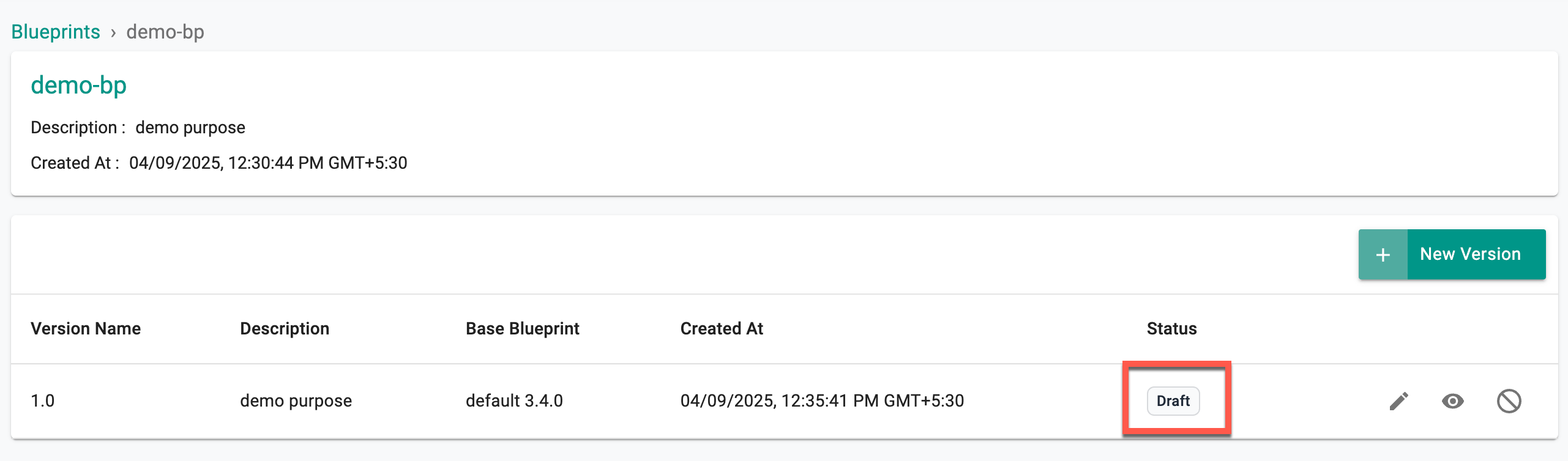

For example, if the version is saved as a draft, its status will be displayed as Draft, as shown below.

Save Blueprint Version


Version Management via RCTL

Blueprint Spec with Version Parameters

Below is an example Blueprint spec where the version parameters are defined:

apiVersion: infra.k8smgmt.io/v3
kind: Blueprint
metadata:
  name: demo-bp
  project: default
spec:
  base:
    name: minimal
    version: 2.11.0
  customAddons:
  - name: demo-addon
    version: v1
  defaultAddons:
    csiSecretStoreConfig:
      providers: {}
    enableIngress: true
    enableLogging: true
    enableMonitoring: true
    enableVM: true
  drift:
    enabled: true
  sharing:
    enabled: false
  type: custom
  version: v2
  versionState: draft

Add-On Spec with Version Parameters

Below is an example Add-On spec where the version parameters are defined:

apiVersion: infra.k8smgmt.io/v3
kind: Addon
metadata:
  name: demo-addon
  project: default
spec:
  artifact:
    artifact:
      paths:
      - name: file://demopath.yaml
    type: Yaml
  namespace: demo-ns
  sharing: {}
  version: v1
  versionState: draft
