Update Blueprint

Post cluster provision, users can update the blueprint anytime in two (2) approaches:

Approach 1: Blueprint Sync Status

  • Login to the controller and click Clusters under Infrastructure
  • Select the required cluster and click the Blueprint Sync success status icon

Below is an example of a cluster with minimal Blueprint

BP Sync Status Icon

  • Click Update Blueprint available at the top right corner of the screen

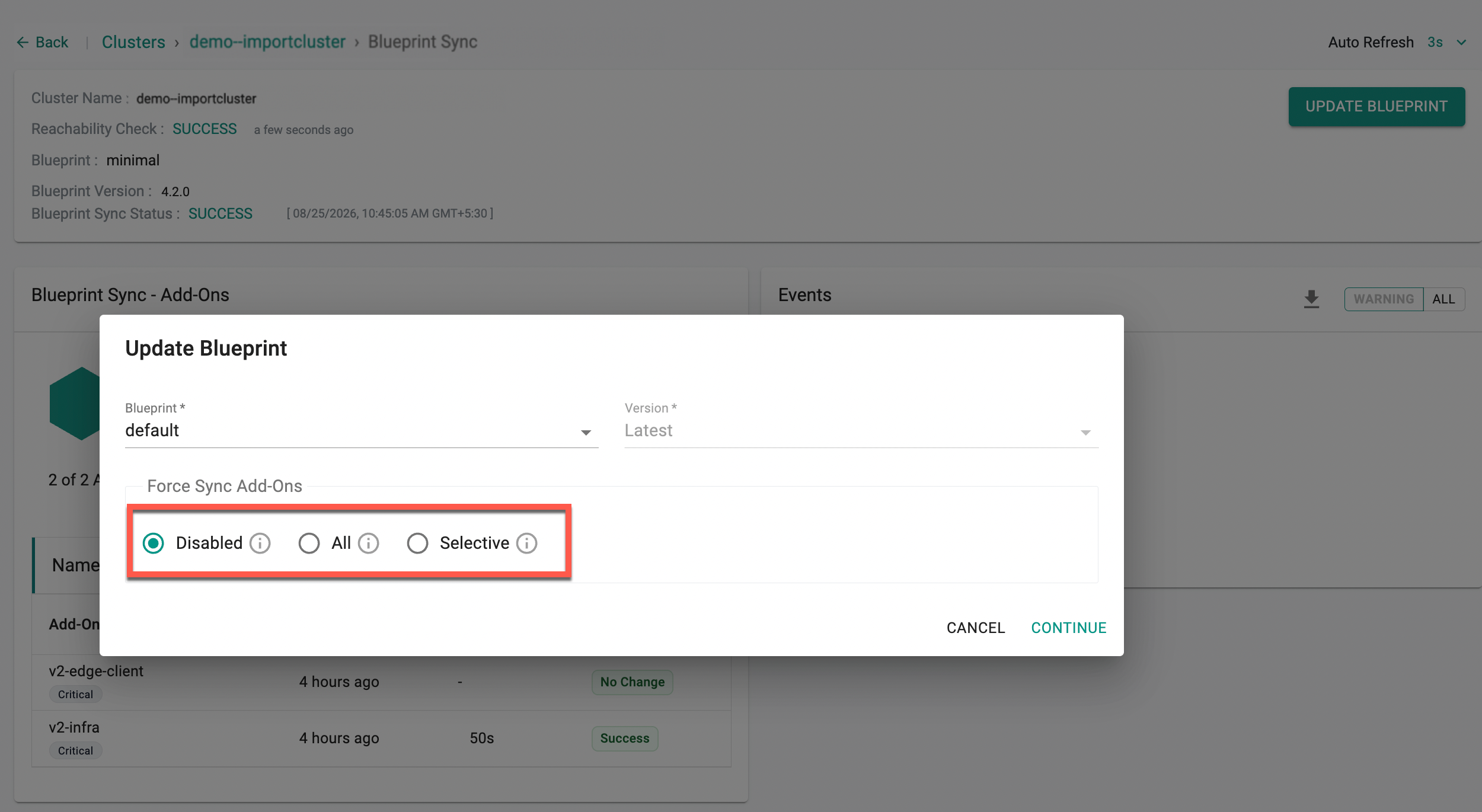

  • Select the required Blueprint (example: default) and Version (if applicable) from the drop-down
  • Click Save and Publish

Select BP

When a user attempts to update a blueprint during an ongoing blueprint sync, the following error occurs:

Blueprint is being synced, please retry after current sync has completed. A force update may leave your cluster in an unpredictable state

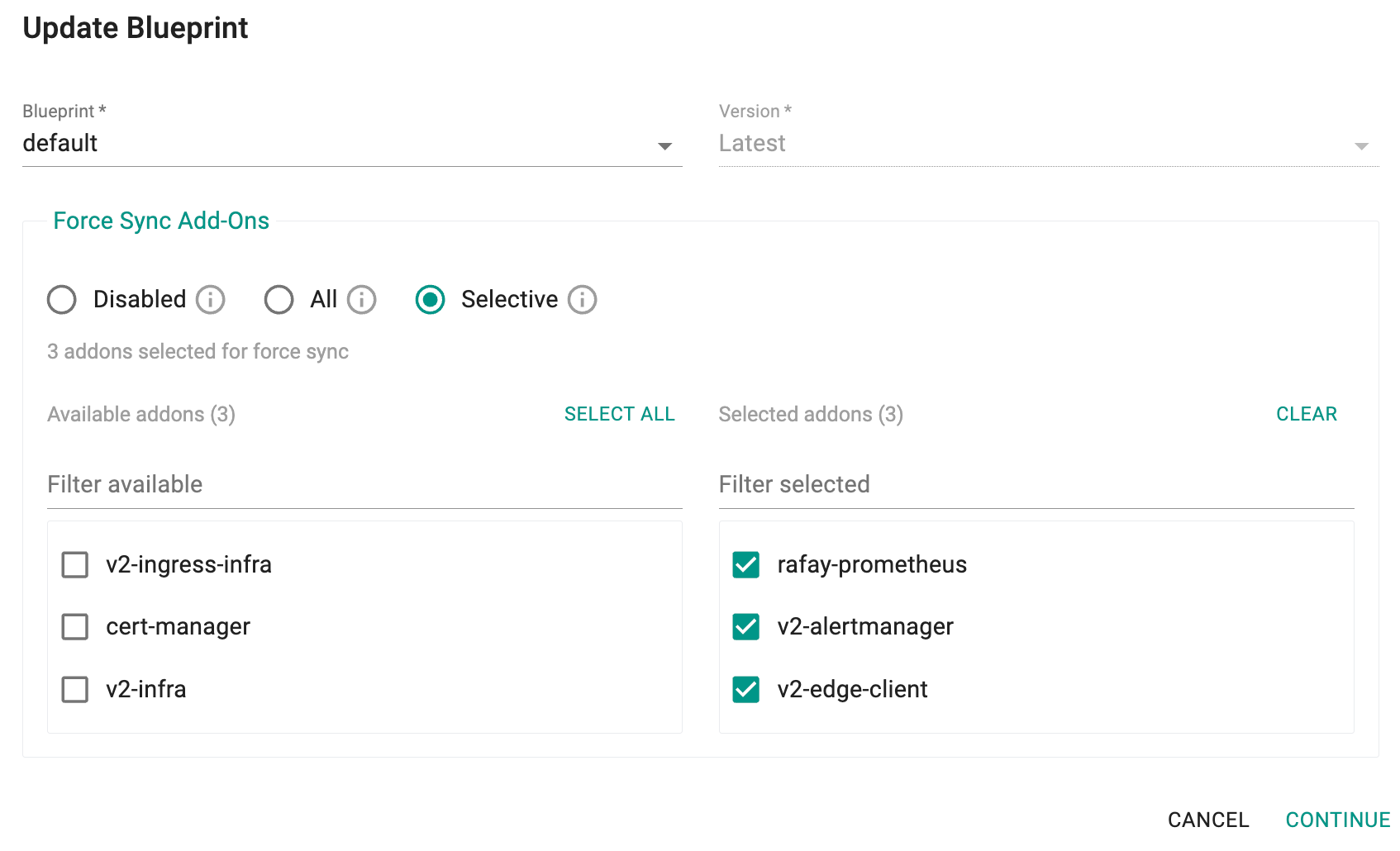

Enabling the Force Sync option triggers the blueprint sync forcefully on the cluster, even if a previous sync is in progress, and overrides the changes.

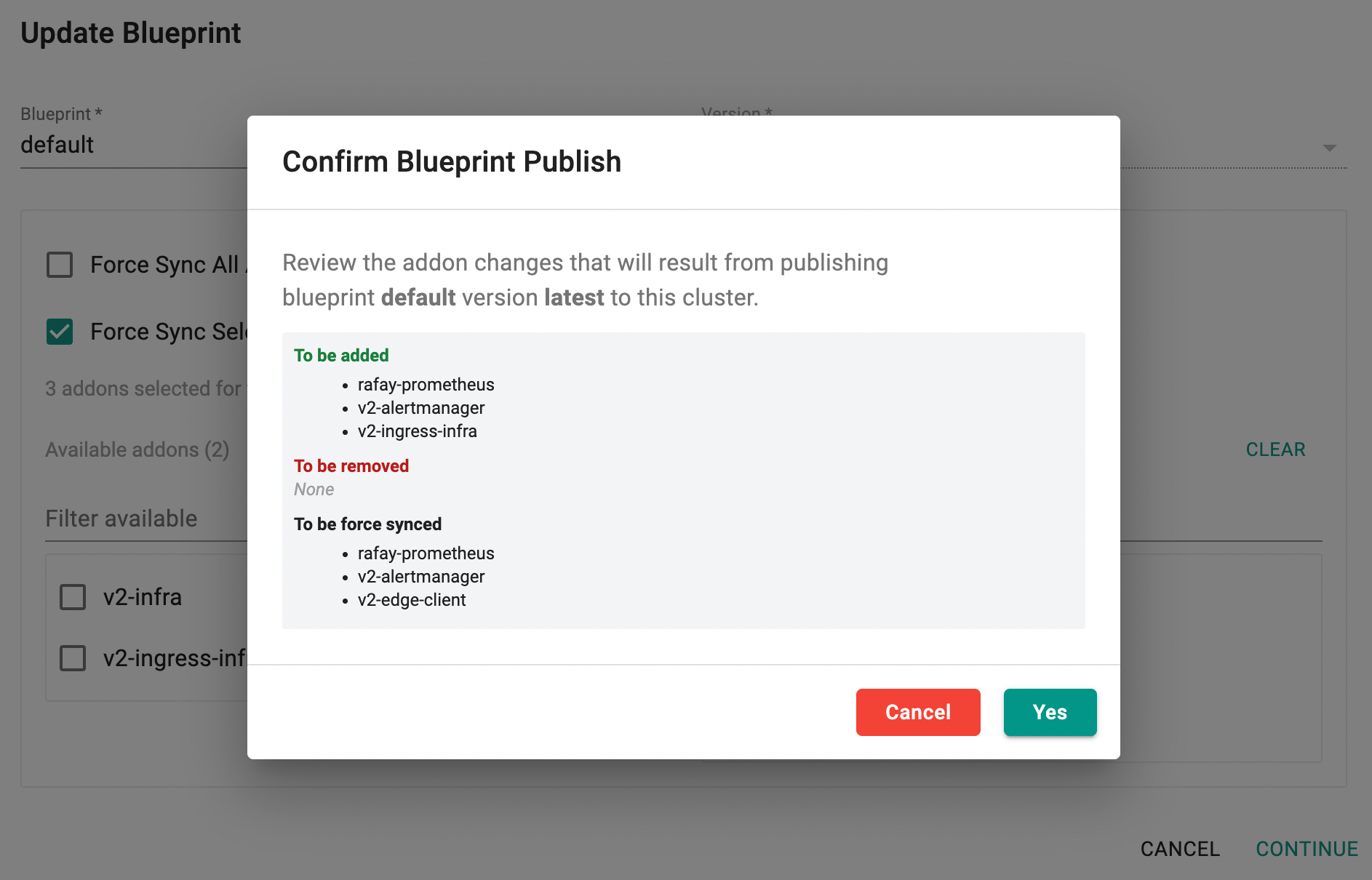

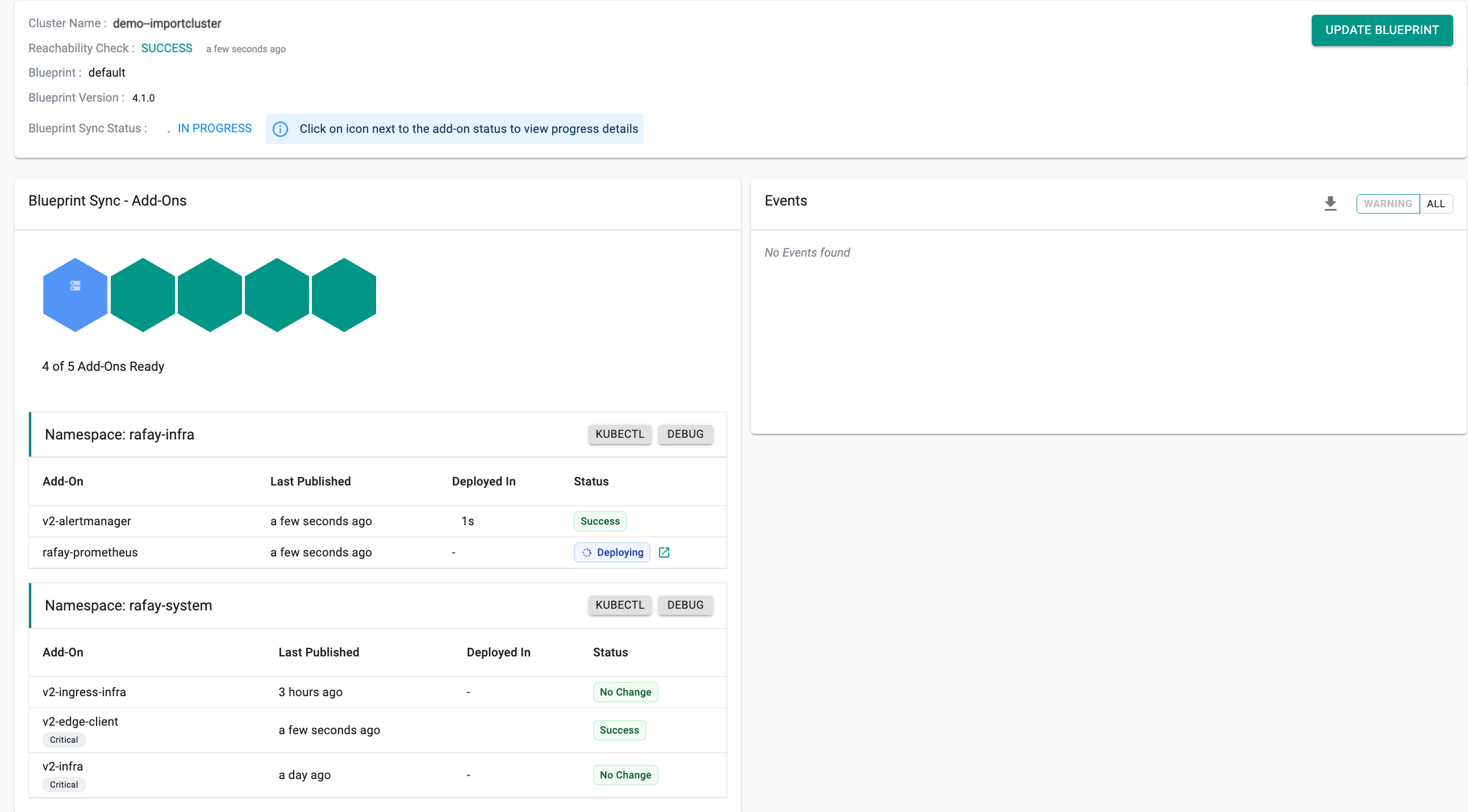

Blueprint Sync process begins and shows the status as In Progress

BP Update In Progress

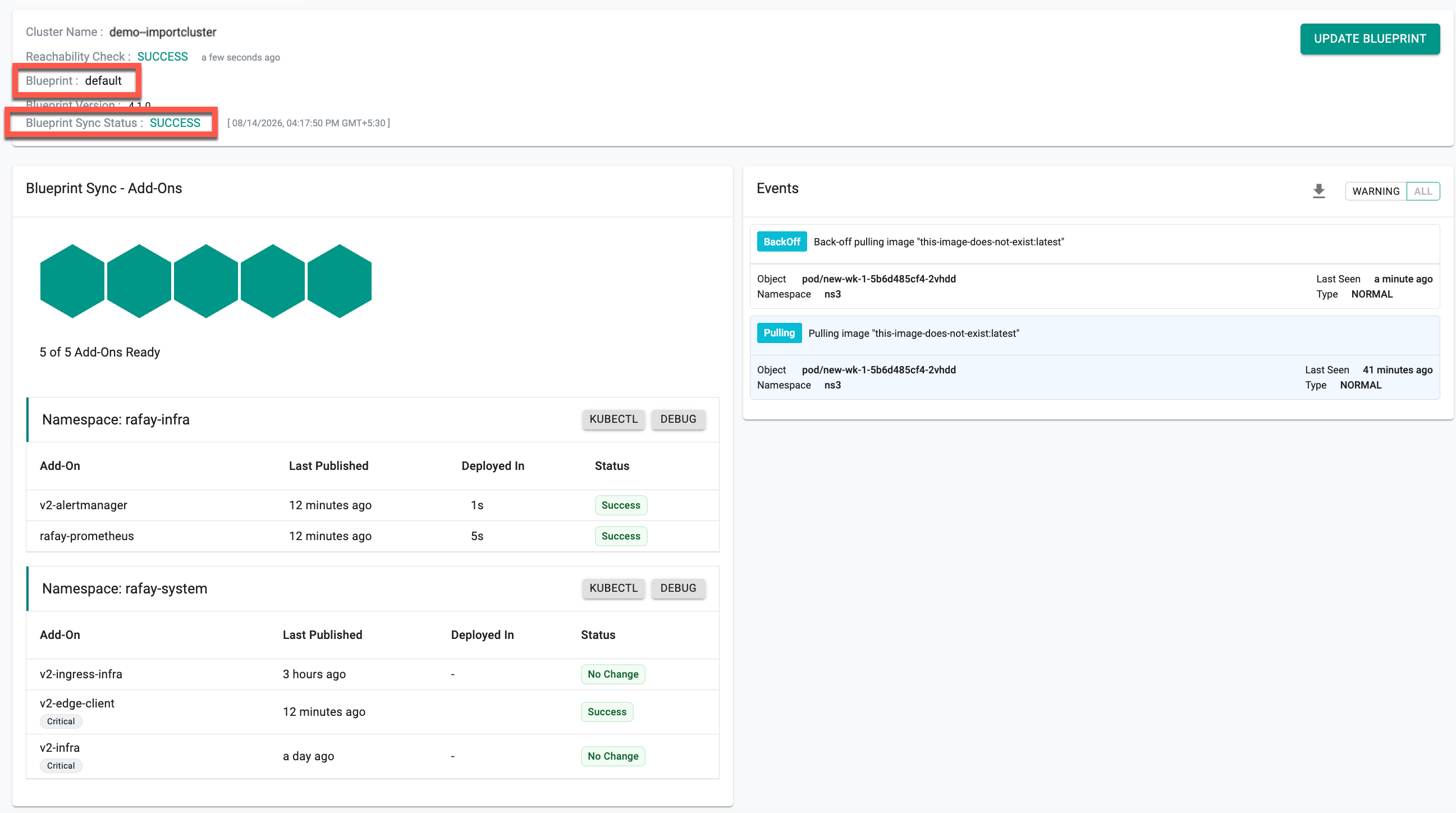

Once the update is complete, the status changes to Success. Users can view the list of Blueprint Sync Add-Ons and Events

BP Update Success


Approach 2: Update Blueprint Option

  • Login to the controller and click Clusters under Infrastructure
  • Select the required cluster and click on the gear icon
  • Click Update Blueprint

Below is an example of a cluster with default Blueprint

BP Update Option

  • Select the required Blueprint (example: minimal) and **Version (if applicable) from the drop-down
  • Click Save and Publish

Select BP and Version

Blueprint Sync process begins and once updated, the status shows Success

Success BP Update

K8s Resources Deployed by Blueprints

When updating a cluster with a custom blueprint, it is important to understand what Kubernetes resources will be deployed as part of the blueprint. This helps in planning and validating changes before applying them to production environments.

To assist with this, the following table lists the Kubernetes resource(s) deployed during the blueprint update:

Blueprint Chart Components Deployed as
minimal v2-relay-agent v2-relay-agent Deployment
v2-infra rafay-connector Deployment
controller-manager-v3 Deployment
v2-edge-client edge-client Deployment
default v2-relay-agent v2-relay-agent Deployment
v2-infra rafay-connector Deployment
controller-manager-v3 Deployment
v2-edge-client edge-client Deployment
rafay-prometheus rafay-prometheus-adapter Deployment
rafay-prometheus-alertmanager Deployment
rafay-prometheus-helm-exporter Deployment
rafay-prometheus-kube-state-metrics Deployment
rafay-prometheus-metrics-server Deployment
rafay-prometheus-node-exporter Daemonset
rafay-prometheus-server Statefulset
v2-ingress-infra ingress-controller-v1-controller Daemonset
openebs-localpv localpv-provisioner Deployment
aws-node-termination-handler aws-node-termination-handler Daemonset
aws-ebs-csi-driver ebs-csi-controller Daemonset
ebs-csi-node Daemonset

ℹ️ Note: K8s resource details for other blueprints will be available soon.


"No Change" in Blueprint Sync

When updating a blueprint, synchronization occurs only if there are changes to the add-ons in that specific blueprint version. Only the relevant components are updated, and for all other components that haven’t changed, it is considered a no operation and hence the system displays "No Change."

Failed BP Update

However, if an add-on failed in the previous sync, it will be retried in the next blueprint sync, even if it has not changed. Users also have the option to perform a Force Sync, which re-applies all add-ons regardless of whether they have been modified.


Failed Blueprint Sync

Blueprint Sync can fail if the user had misconfigured the cluster configuration (e.g. invalid Blueprint, versions or Add-Ons) or encountered storage limits for resources. When this occurs, red indication appears to show the sync failure. Hover over the red indication or Failed status icon to view the reason for sync failure

Failed BP Update

Users are allowed to edit the configuration and retry updating the Blueprint
