Agent Pools

Agent Pools provide a way to group multiple agents together, making it easier to manage and update them collectively across templates and environments.

Info

Agent Pools can be managed through various methods:


Overview

An Agent Pool is a first-class object that enables managing multiple agents as a group. This is especially beneficial in high-load environments where a single agent might become a bottleneck.

With Agent Pools, users can: - Group existing agents for easier management - Modify the pool to add or remove agents, and have changes automatically reflected across all associated templates - Use Agent Pools anywhere agents are currently supported, such as Environment Templates, Resource Templates, and Environments - Choose to attach either individual agents or agent pools


Key Benefits

  • Centralized Management: Update the pool once and changes apply everywhere it’s used
  • Flexibility: Supports mixing Docker and Kubernetes agents in the same pool
  • Scalability: Distribute workloads across multiple agents to avoid performance bottlenecks

Configuration Guidelines

  • Agents must be created before adding them to an Agent Pool (pools cannot create agents)
  • Configuration such as CPU/memory limits and worker count remains at the agent level
  • An agent can belong to only one Agent Pool
  • Agent and Agent Pool names are independent; they can be the same without conflict
  • Pools can contain agents with different versions (though uniform versions are recommended)
  • Multiple Agent Pools can be attached to an Environment Template, or Resource Template, supporting transitional workflows

UI Workflow

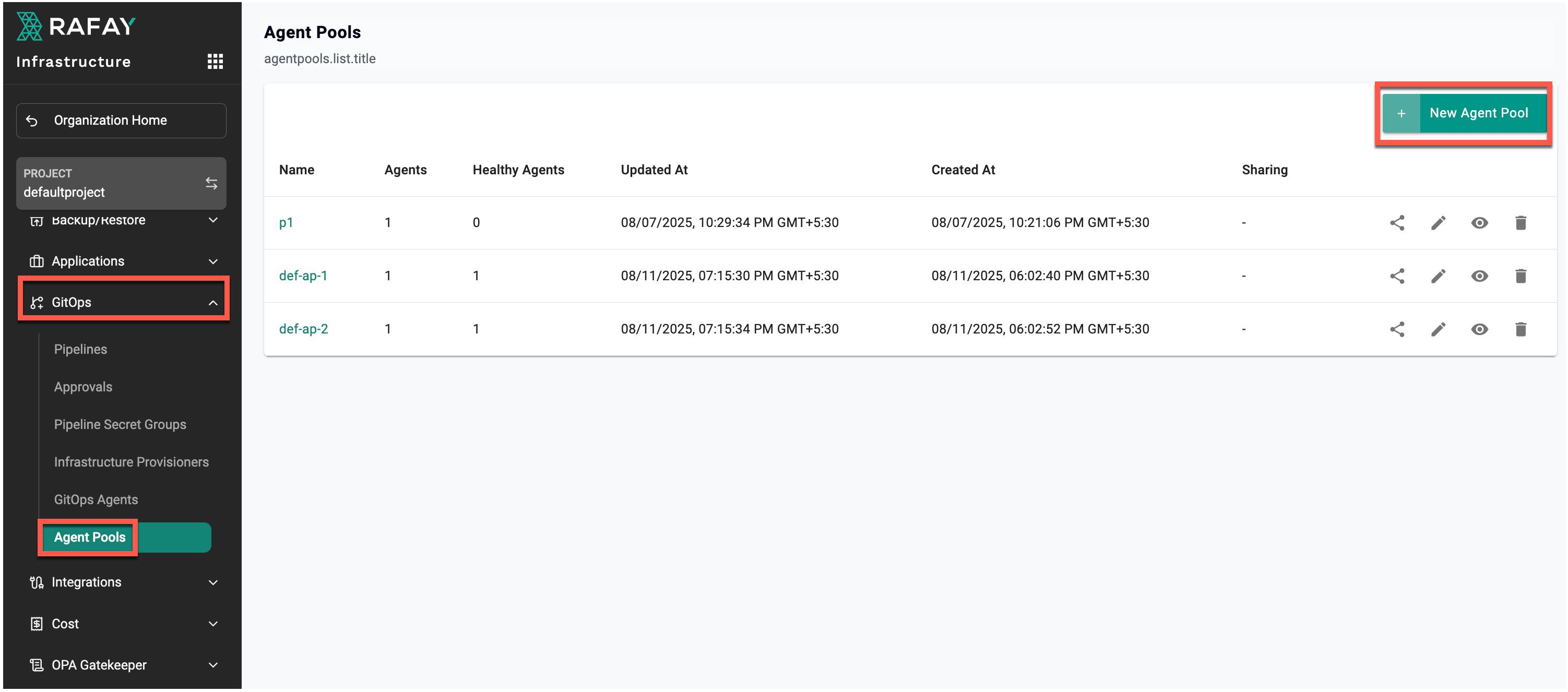

  1. Navigate to GitOps β†’ Agent Pools
  2. Click New Agent Pool

New Agent

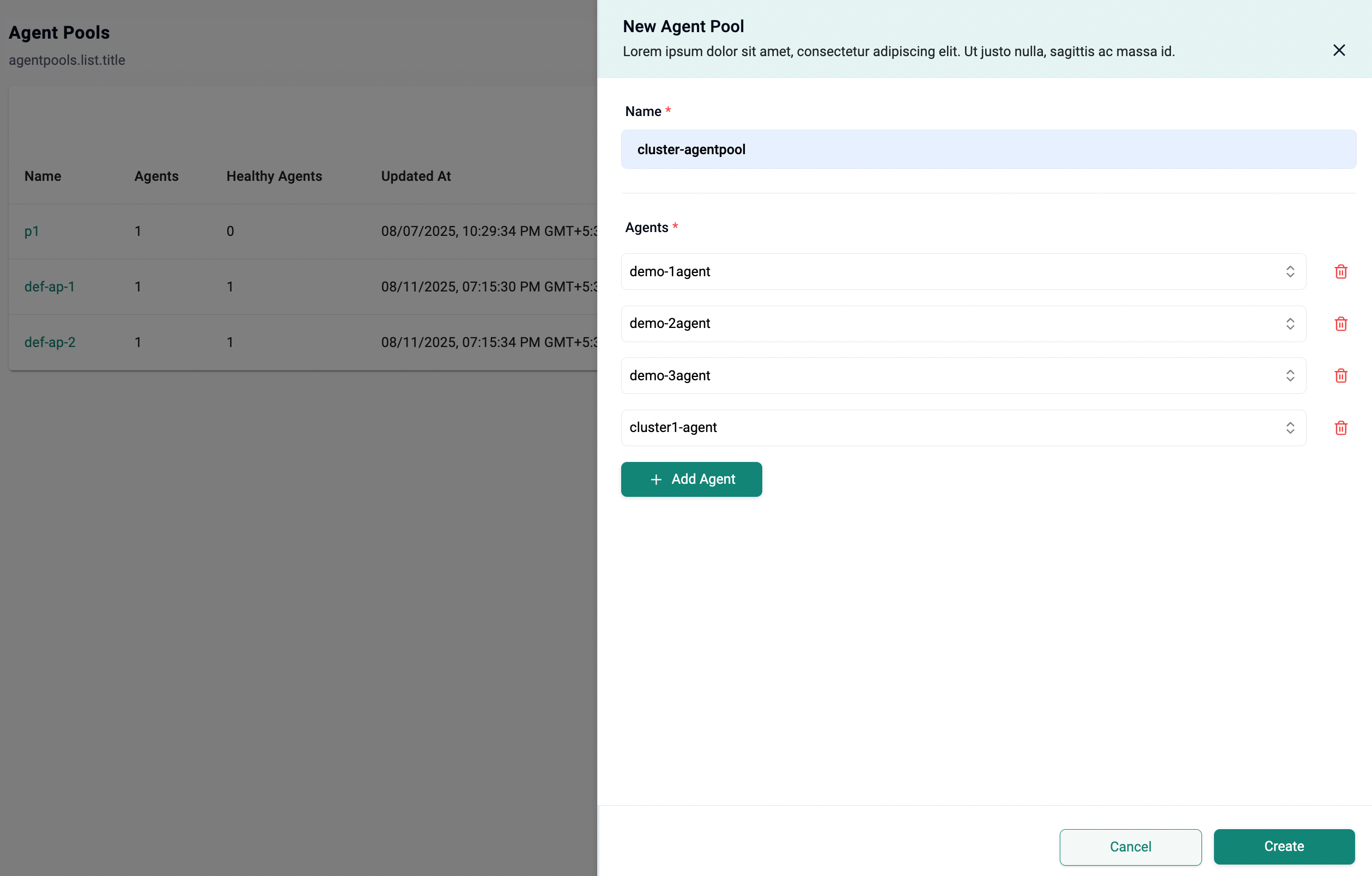

The New Agent Pool pop-up appears

  1. Enter a Name for the pool
  2. Select one or more existing agents to include in the pool
  3. Click Create

New Agent

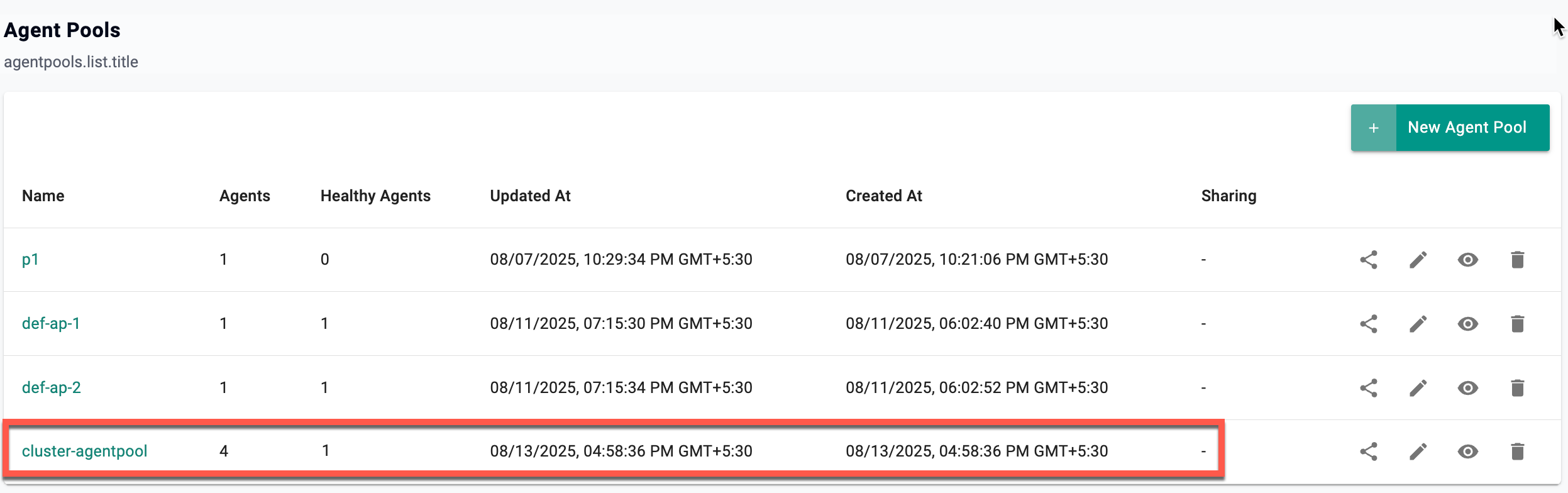

Once an agent pool is added, it appears in the Agent Pools list.

New Agent

The agent pool can be configured when creating an environment template, resource template, and environment.

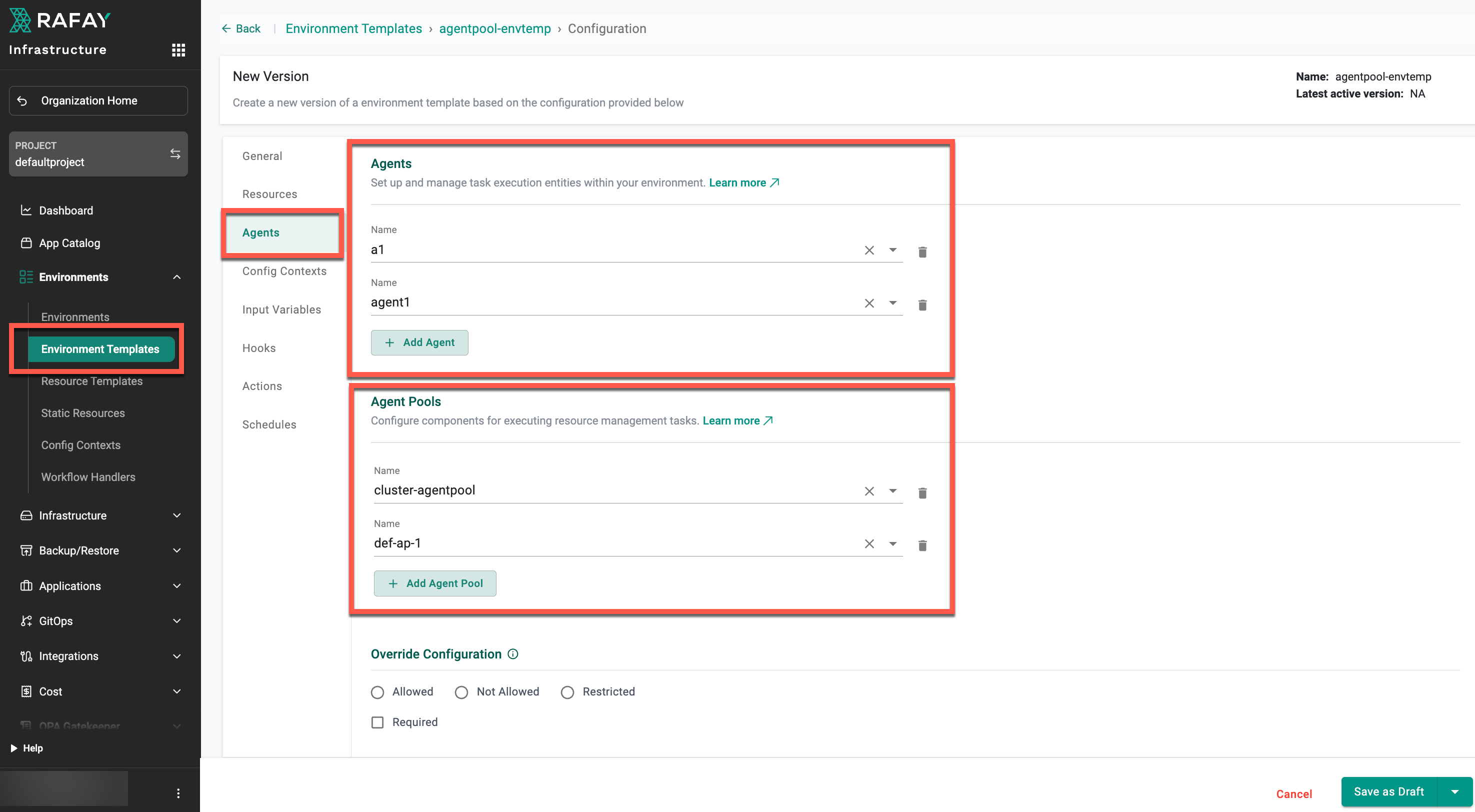

Below is an example of an Environment Template where the agent pool is selected.

New Agent

Note: Additional individual agents can also be added, even if they are already part of the selected agent pool.


RCTL CLI

The following example demonstrates how to create an Agent Pool using the RCTL CLI.

apiVersion: gitops.k8smgmt.io/v3
kind: AgentPool
metadata:
  name: cluster-agentpool
  project: defaultproject
spec:
  agents:
    - agentpool-1
    - agentpool-2
    - agentpool-3
    - agentpool-4

Use the below commands to create/get/delete agent pool(s)

Create Agent Pool

Apply an Agent Pool specification file to create a new pool.

./rctl apply -f <agentpool.yaml>

List Agent Pools

To list all agent pools:

./rctl get agentpools

(or)

./rctl get ap

Example

./rctl get agentpools
+-------------------+----------------+----------------+
| AGENT POOL NAME   | AGENTS         | HEALTHY AGENTS |
+-------------------+----------------+----------------+
| p1                | agent1         |                |
+-------------------+----------------+----------------+
| def-ap-1          | def-a-1        | def-a-1        |
+-------------------+----------------+----------------+
| def-ap-2          | def-a-2        | def-a-2        |
+-------------------+----------------+----------------+
| cluster-agentpool | demo-1agent    | demo-3agent    |
|                   | demo-2agent    |                |
|                   | demo-3agent    |                |
|                   | cluster1-agent |                |
+-------------------+----------------+----------------+

To retrieve details of an individual Agent Pool:

./rctl get agentpool <agentpool-name>

Example

./rctl get ap cluster-agentpool
+-------------------+----------------+----------------+
| AGENT POOL NAME   | AGENTS         | HEALTHY AGENTS |
+-------------------+----------------+----------------+
| cluster-agentpool | demo-1agent    |  demo-3agent   |
|                   | demo-2agent    |                |
|                   | demo-3agent    |                |
|                   | cluster1-agent |                |
+-------------------+----------------+----------------+

Delete Agent Pool

To delete a specific Agent Pool:

./rctl delete agentpool <agentpool-name>

(or)

./rctl delete ap <agentpool-name>
