App Resizing

Overview¶

The App Resizing feature helps identify unused CPU and memory resources reserved by applications running in clusters. Applications are often configured with resource requests that exceed actual usage, resulting in wasted capacity.

App Resizing generates a resource utilization report based on historical usage data. The report provides visibility into actual consumption and helps administrators manually resize application resource requests to improve cluster utilization.

Note: This feature provides usage insights only and does not automatically modify application resources.

Role-Based Access¶

Role	Access
Org Admin	Full access, including configuration, report generation, download, delete, and rerun
Org Read Only Admin	View configuration and download reports

Generating an App Resizing Report¶

Supported Interfaces

UI

Swagger API

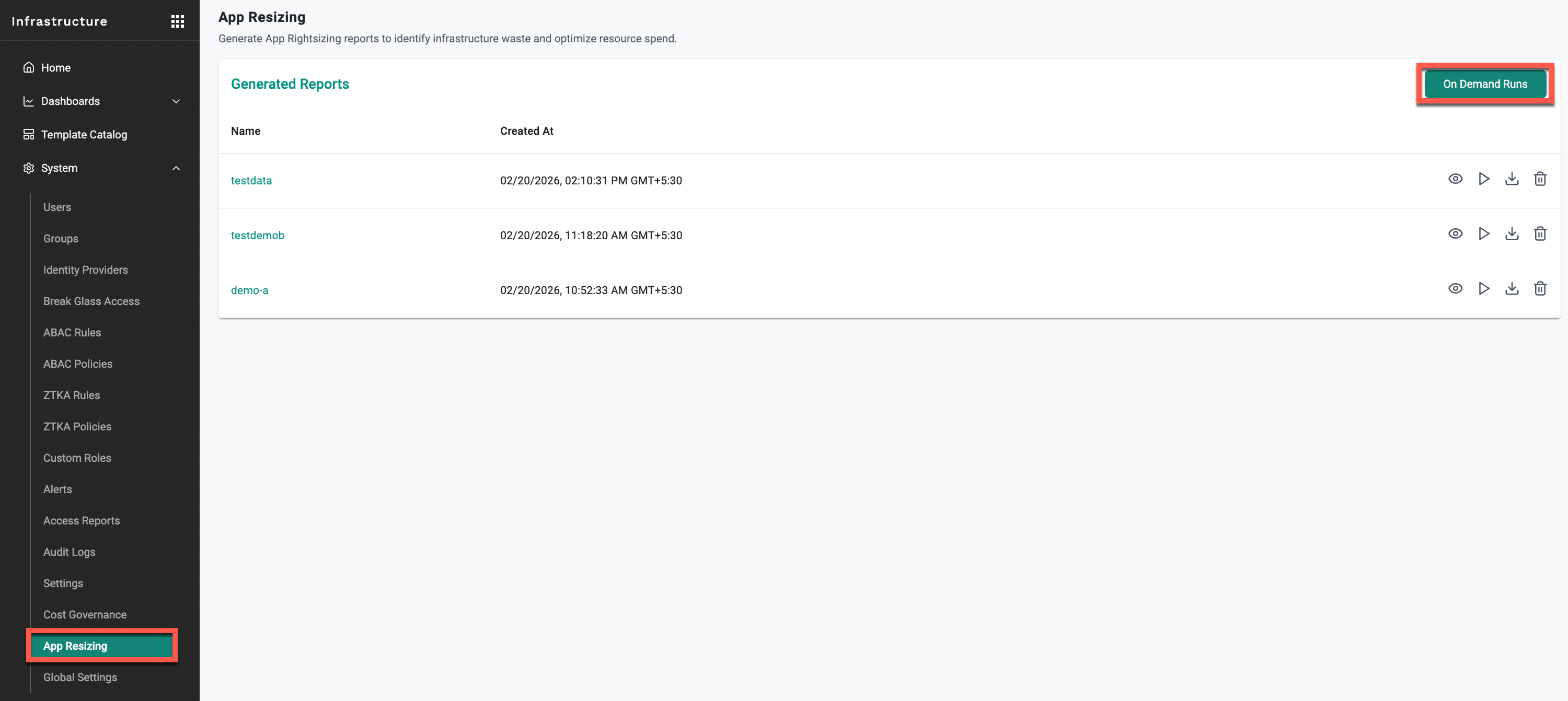

Step 1: Navigate to App Resizing¶

From the left navigation menu, select System and click App Resizing.
Click on On Demand Runs.

Step 2: Configure Report Settings¶

Provide the required configuration.

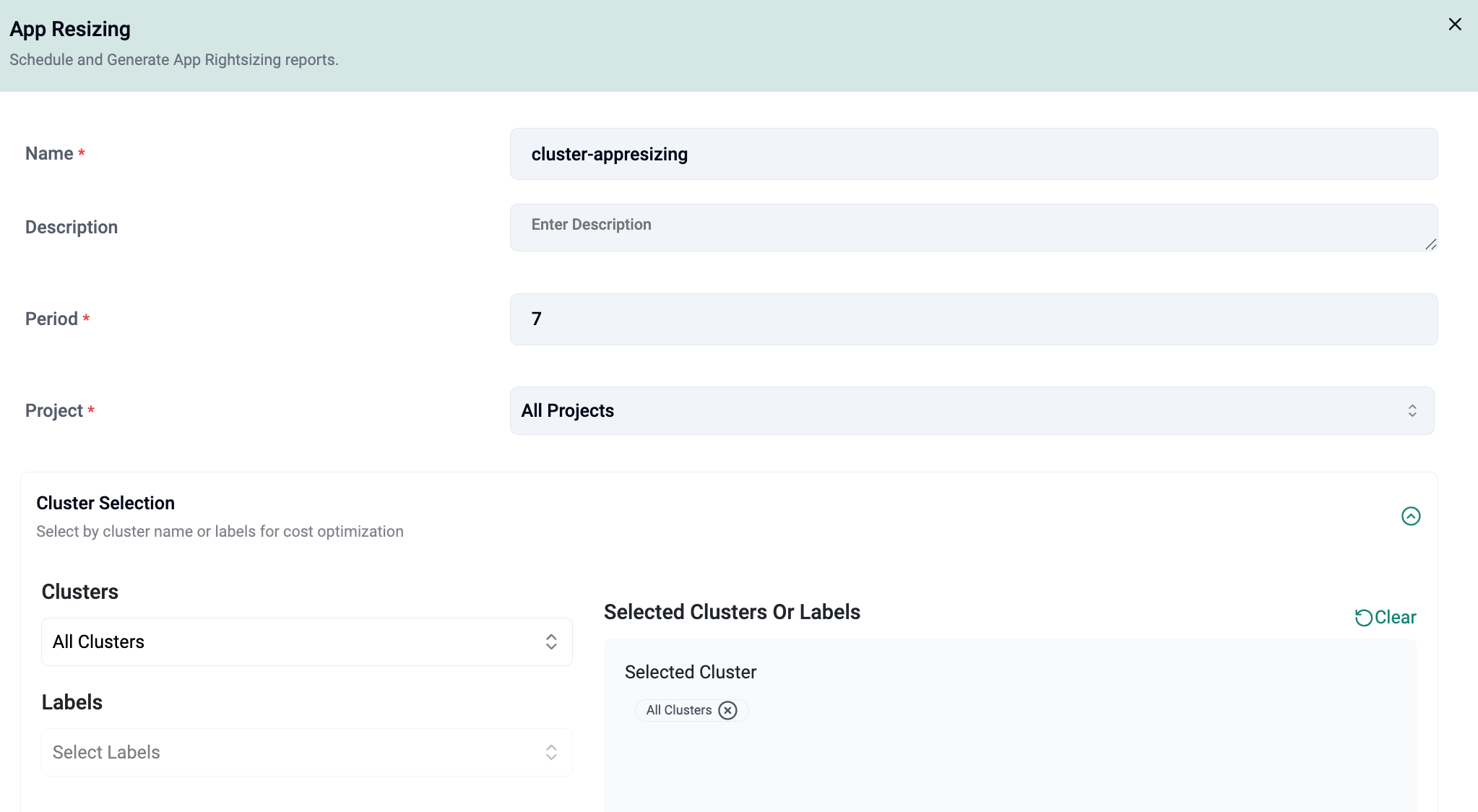

Basic Details¶

Name: Name for the report configuration.
Description: Optional description.
Period: Number of days used for analysis. Example: 7 analyzes resource usage for the last seven days.
Project: Select a specific project or all projects.

Cluster Selection¶

Clusters can be selected using:

Individual cluster selection
All clusters
Cluster labels (for selecting multiple clusters with common labels)

Selected clusters or labels appear in the Selected Clusters Or Labels section.

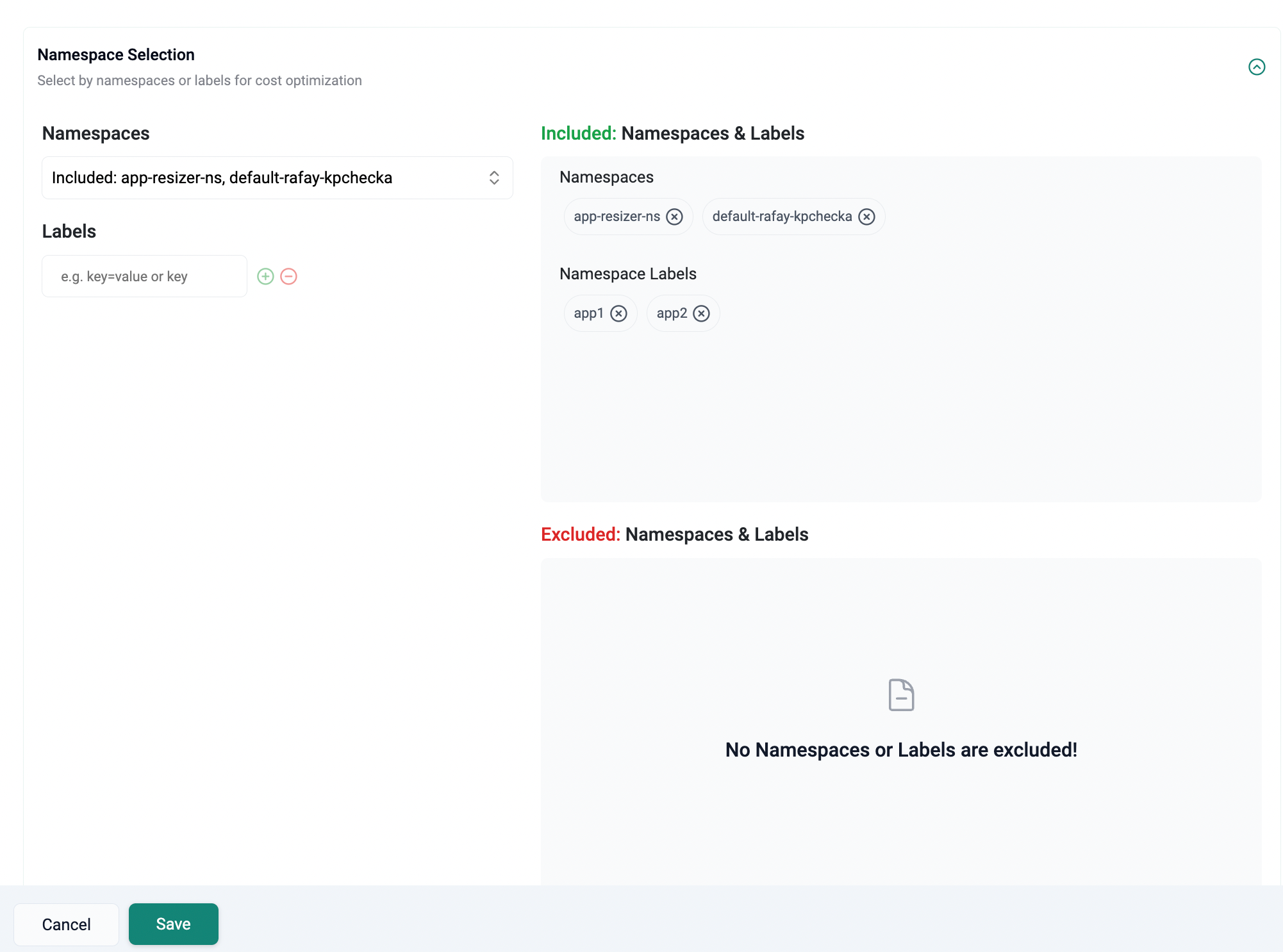

Namespace Selection¶

Namespaces can be selected using:

Individual namespace selection
Namespace labels

Configured namespaces are displayed under:

Included: Namespaces & Labels
Excluded: Namespaces & Labels

Step 3: Generate the Report¶

Click Save.
Report analysis runs in the backend.
Reports are generated based on the selected scope.

Step 4: Download Reports¶

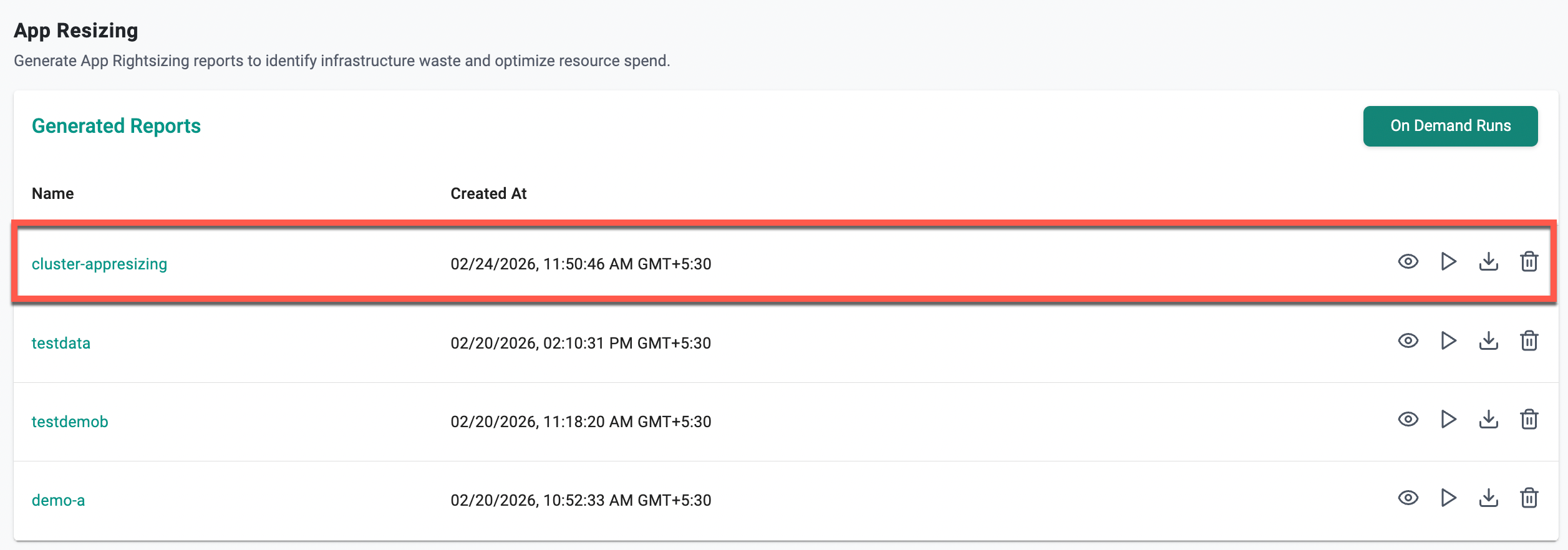

Image Placeholder: Generated Reports table showing report entries and download option.

After report generation:

Reports appear in the Generated Reports list.
One report is generated per cluster.
When multiple clusters are selected, reports are packaged into a single ZIP file for download.

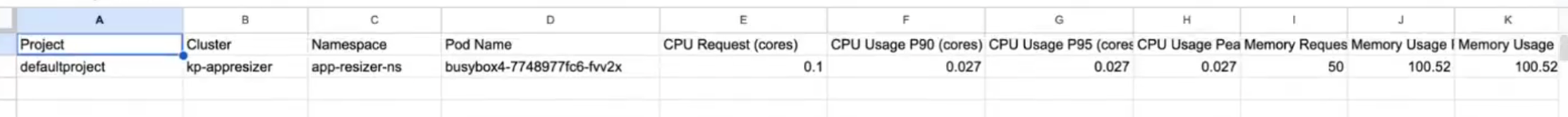

Report Contents¶

The generated report provides resource utilization metrics for applications running in the selected clusters and namespaces.

Each report includes the following fields:

Project – Project associated with the workload.
Cluster – Cluster where the application is running.
Namespace – Namespace containing the workload.
Pod Name – Name of the pod analyzed.
CPU Request (cores) – CPU resources currently requested.
CPU Usage P90 (cores) – 90^th percentile CPU usage during the selected period.
CPU Usage P95 (cores) – 95^th percentile CPU usage during the selected period.
CPU Usage Peak – Maximum CPU usage recorded.
Memory Request – Memory resources currently requested.
Memory Usage P90 – 90^th percentile memory usage during the selected period.
Memory Usage P95 – 95^th percentile memory usage during the selected period.
Memory Usage Peak – Maximum memory usage recorded.

These values help identify application resources where requested values are higher than actual utilization, enabling administrators to manually optimize resource settings.

Apply App Resizing¶

After reviewing the report, resource requests must be manually updated in the application configuration within the cluster. This applies to any resource where CPU and memory requests are defined.

To resize an application:

Navigate to the application or resource running in the cluster.
Open the associated YAML configuration.
Locate the resources section under the container specification.
Update the CPU and memory request values based on the report insights.
Save and reapply the updated configuration.

Example¶

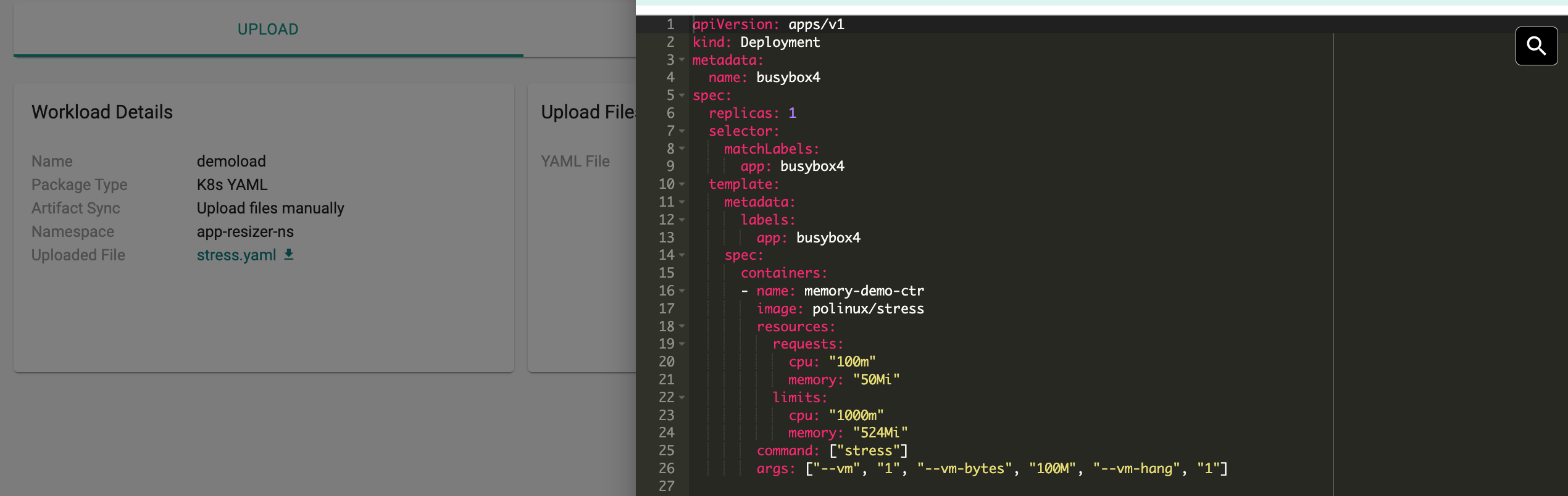

The following example shows a workload YAML where CPU and memory requests can be updated:

resources:
  requests:
    cpu: "100m"
    memory: "50Mi"
  limits:
    cpu: "1000m"
    memory: "524Mi"

This example is provided for reference. The same approach applies to any application resource that defines resource requests in its YAML specification.

This approach applies to any workload or application that defines CPU and memory requests in its YAML specification.

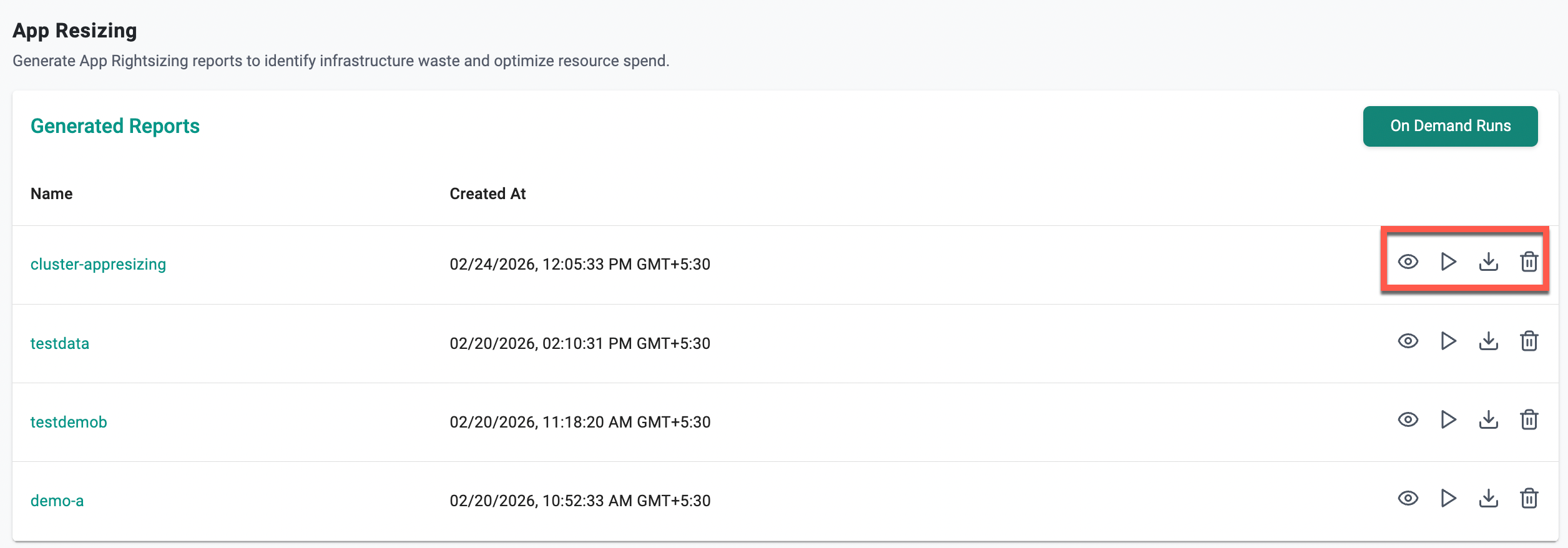

Generated Reports Actions¶

Each entry in the Generated Reports table provides the following actions:

View (Eye icon): Displays the report details and configuration information.
Rerun (Play icon): Generates a new report using the same configuration.
Download (Download icon): Downloads the generated report. If multiple clusters are included, the reports are downloaded as a ZIP file.
Delete (Trash icon): Removes the report entry from the list.

These actions allow viewing, regenerating, downloading, and managing previously generated reports.
