Load Profiles and Templates

Prerequisites

Ensure the following requirements are met before starting:

• Package URLs:

  • URL to download the installer package for profiles/templates and dependencies
  • URL to download template images (required only for air-gapped controllers)

• Access to Ops Console of the target Rafay Controller with Partner Admin permissions

• A NOC node (Ubuntu, AMD architecture) for setup with:

  • Access to the controller domain
  • Minimum 130 GB free disk space
  • Python 3.x installed

---

Setup

1. Create Partner API Key

1. Login to the controller Ops Console. Example: https://ops-console.<example.com>.
2. Ensure the user account has Partner Admin access.

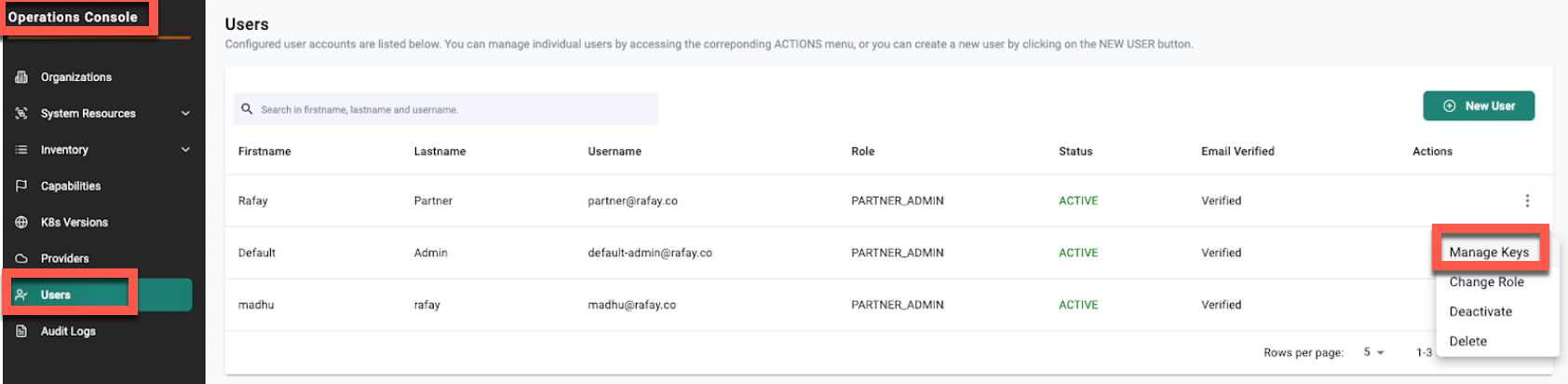

3. Navigate to Users.
4. Locate the username and click the options menu (⋮).
5. Select Manage Keys
6. Click on New API Key

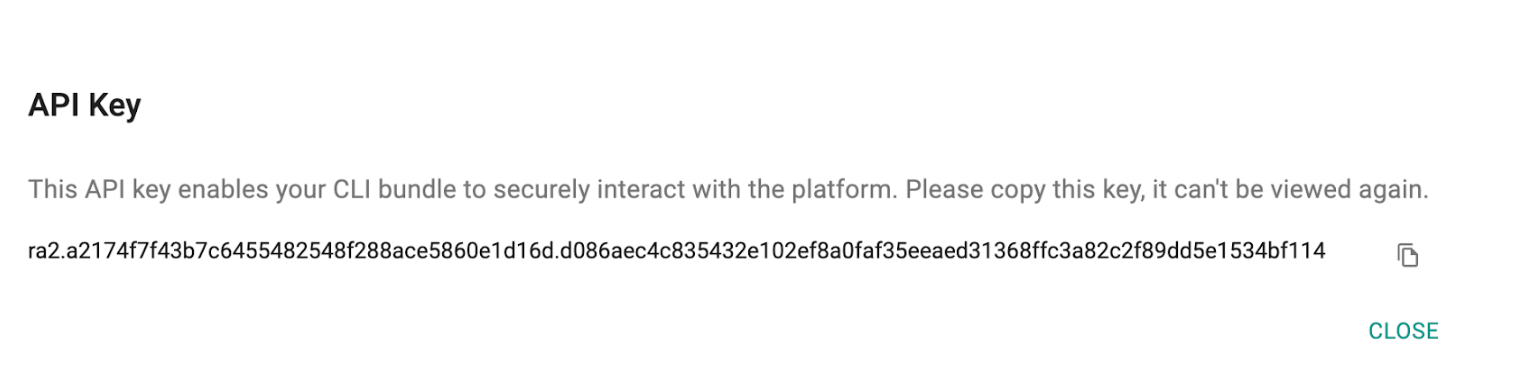

7. Copy and securely store the generated API key for use in the configuration file.

---

2. Download the Package

1. Create a setup directory. Example: packagesetup

2. Download the package from the URLs provided by Rafay into the setup directory packagesetup.

   • Download the images package only for air-gapped controllers.

3. Extract the downloaded packages inside the setup directory packagesetup.

   • Extract the images package only if downloaded.

After extraction, the directory contains:

catalog-templates.tar.gz
config.yaml
loader-utility.py
Changelog.md

---

Configuring config.yaml

The config.yaml file must be updated before running the loader utility.

Example configuration:

# environment
hostenv: <hostenv>
opsenv: <opsenv>
# API key
apikey: <apikey>
# Project name
projectname: default-catalog
untar: True
load_images: False
images_file_name: rafay-cluster-images-3.1.38.tar.gz

Update the following fields

• <hostenv> → Controller console URL (Example: console.<example.com>)
• <opsenv> → Ops Console URL (Example: ops-console.<example.com>)
• load_images
  • True → Air-gapped controller (images are loaded into controller registry)
  • False → Templates pull images from Rafay Nexus registry

If load_images is set to True, ensure the images package is downloaded and available in the extracted directory.

Note: Optionally, update projectname if templates need to be loaded to a project other than default-catalog.

---

Loading Profiles and Templates

From the setup directory, run:

python3 loader-utility.py

After successful execution:

• Templates appear under Template Catalog in the Infra Portal.
• Profiles appear under Profile Catalog in SKU Studio.

---
