Network Switches
The Switches in Inventory Data Centers allows cloud partners to register and manage all physical network switches used in their infrastructure. These switches form the backbone of data center connectivity—enabling provisioning, tenant isolation, and routing of compute traffic.
Cloud partners must onboard each switch into the system so that it can be identified and used during automated provisioning workflows. Each switch is assigned a role, and network details like loopback IP, management IP, and BGP ASN.
Why use the Switches section?¶
- Centralized visibility into all network switches used in the infrastructure
- Associate switch roles to define provisioning and traffic routing paths
- Enable automated tenant isolation through role-aware network mapping
- Support BGP-based routing and IP-level management of hardware
Manage Network Switches¶

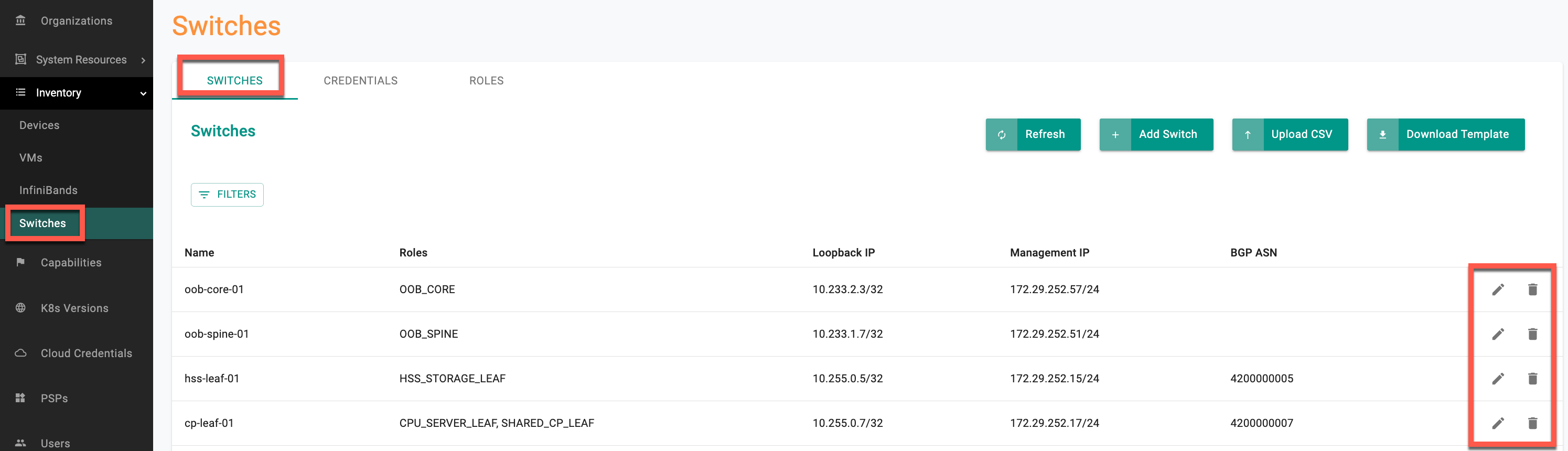

The Network Switches tab provides a view of all switches currently onboarded. It includes basic metadata such as:
Field | Description | Example |
---|---|---|
Name | Identifier for the switch | oob-core-01 |
Roles | Function assigned to the switch (can be multiple) | OOB_CORE , GPU_COMPUTE_LEAF |
Loopback IP | IP used for internal routing and diagnostics | 10.233.2.3/32 |
Management IP | IP used for out-of-band management access | 172.29.252.57/24 |
BGP ASN | Autonomous system number used for routing | 4200000005 |

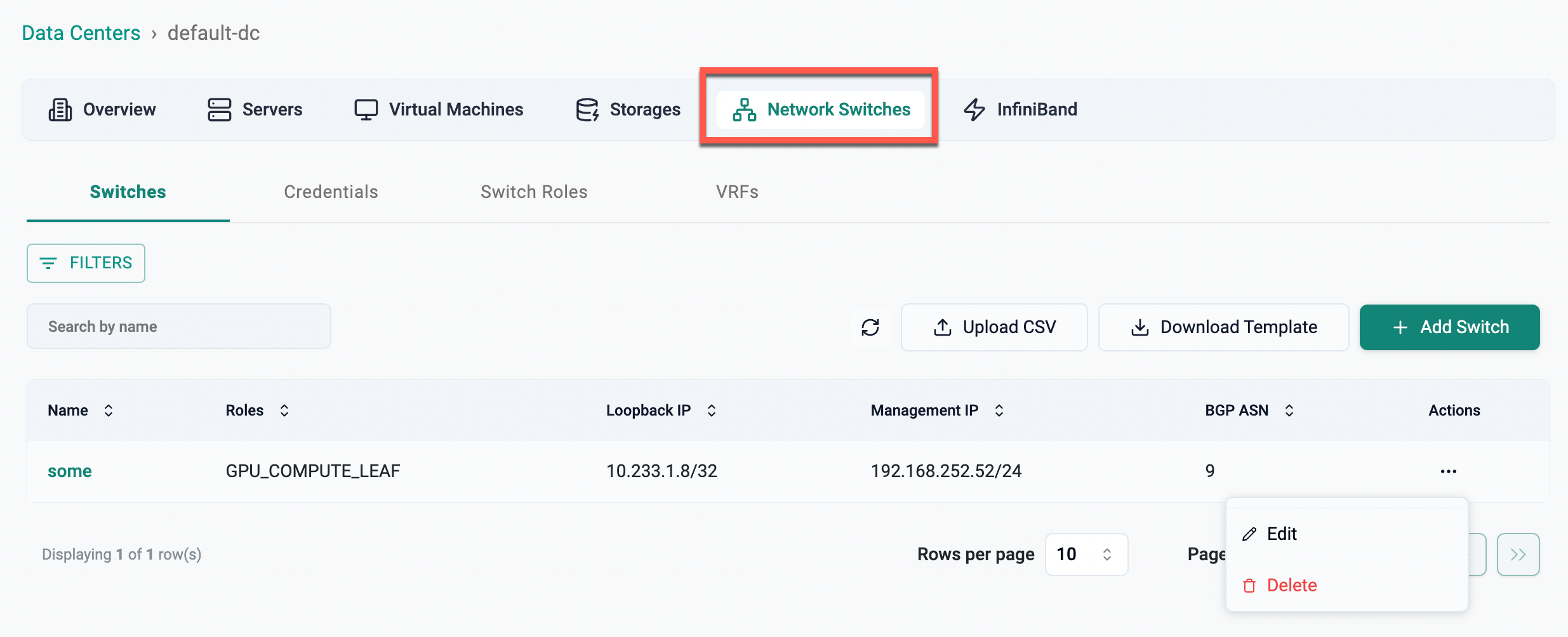

From the Network Switches page, click the ellipsis icon at the far right of the required switch, and then select Edit or Delete.
Add a Switch¶

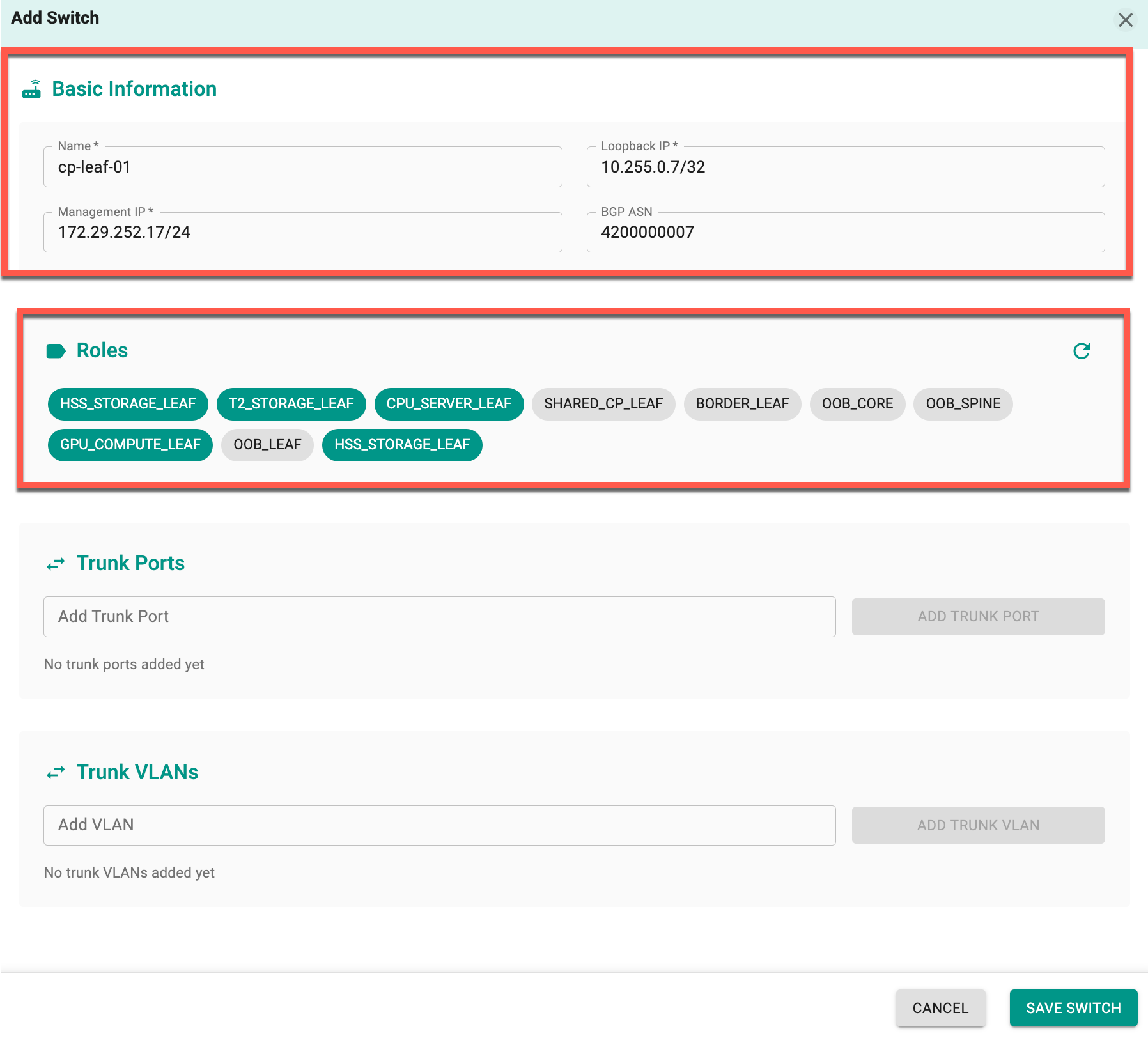

To onboard a new switch:
- Click Add Switch
- Provide the following details:
- Name (e.g.,
cp-leaf-01
) - Loopback IP (e.g.,
10.255.0.7/32
) - Management IP (e.g.,
172.29.252.17/24
) - BGP ASN (e.g.,
4200000007
)
- Name (e.g.,
- Assign one or more roles using the predefined tags (e.g.,
CPU_SERVER_LEAF
,OOB_SPINE
, etc.) - Optionally, add Trunk Ports and Trunk VLANs to specify switch uplink configuration
- Click Save Switch to register
Additional Options¶
- Refresh: Reloads the switch list to reflect any recent additions, deletions, or edits.
- Upload CSV: Allows bulk creation of switches using a structured CSV file. Each row represents a switch definition.
- Download Template: Downloads a sample CSV file with the correct format to help you structure your bulk import correctly.
Credentials¶

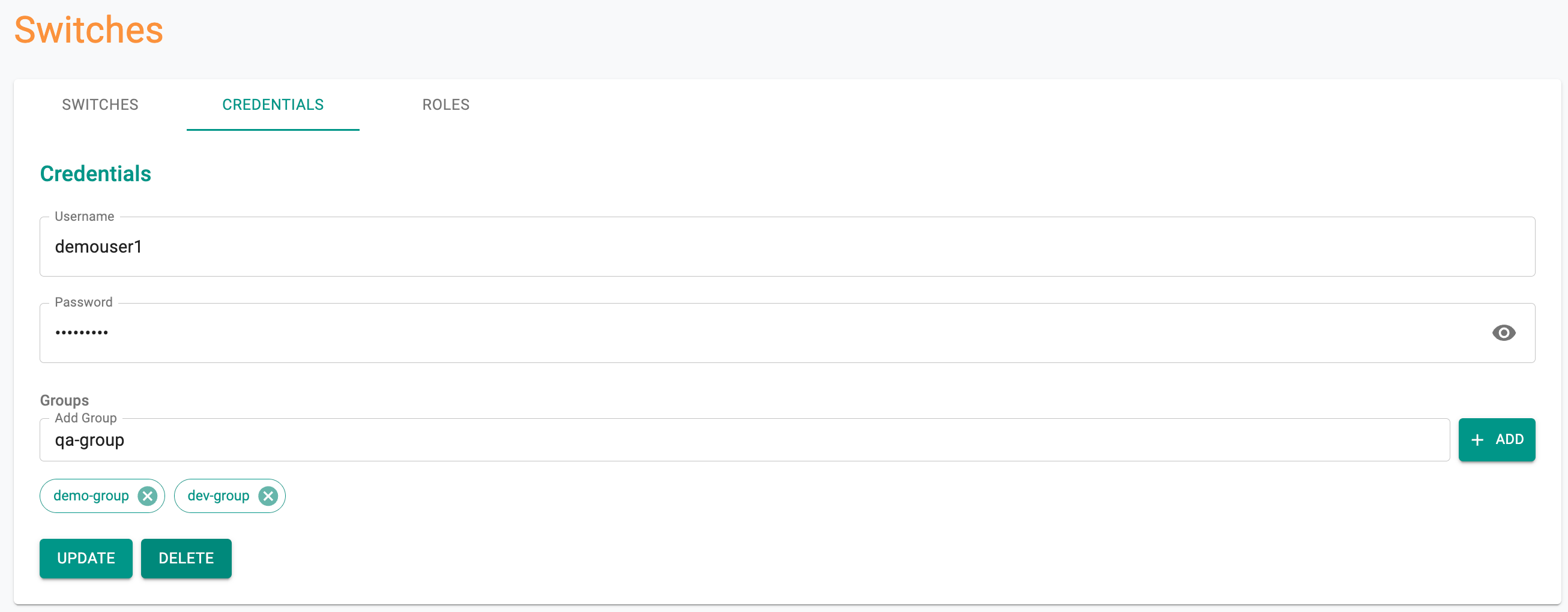

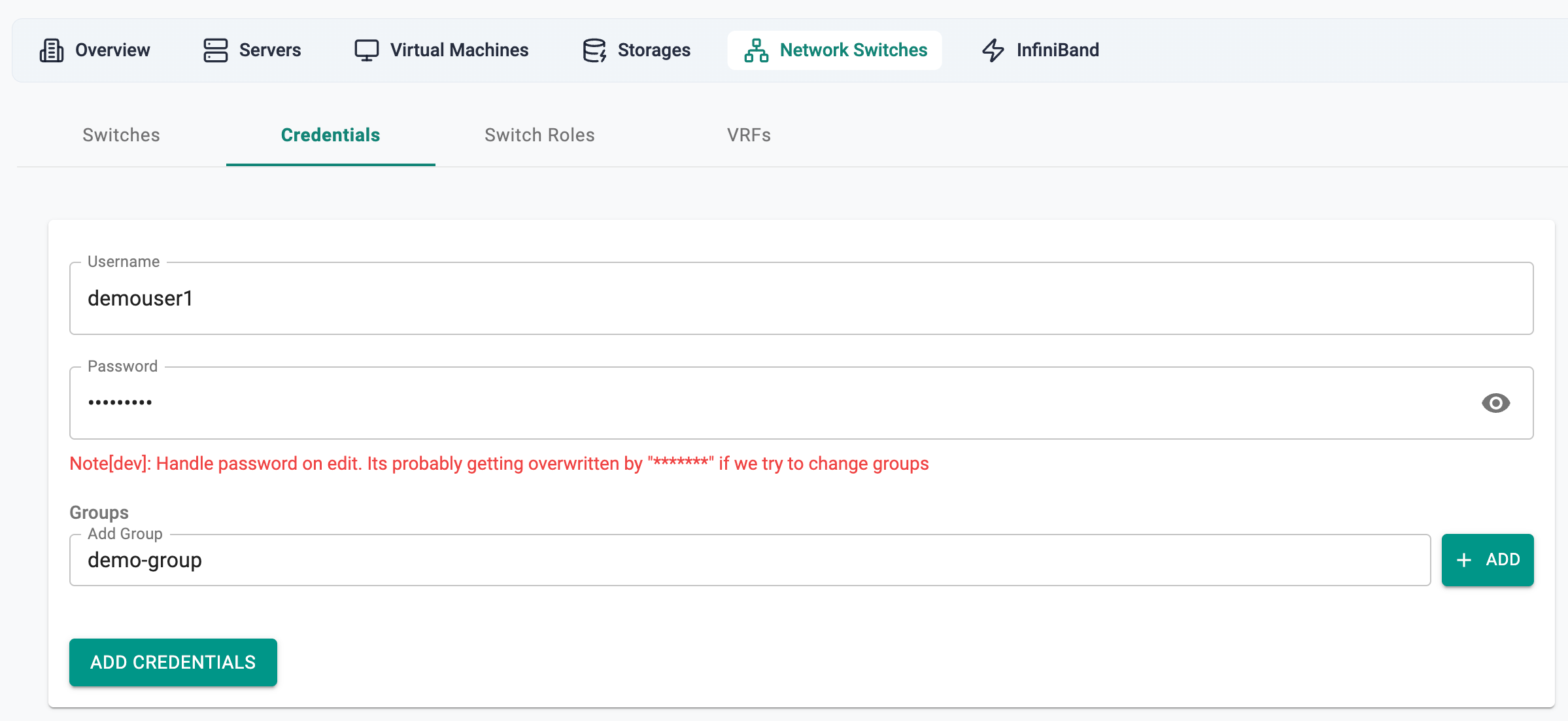

The Credentials tab allows administrators to securely store and manage login information required to access physical switches.
These credentials are used by the platform during automation workflows to configure and validate switch settings. Only cloud partner admins have access to this section.
Fields¶
Field | Description | Example |
---|---|---|
Username | The login username for accessing the switch | demouser1 |
Password | Associated login password (hidden in UI) | ******** |
Groups | Logical grouping of switches for credential sharing and access control | demo-group , dev-group , qa-group |
Admins can add a new group, update credentials, or delete them entirely using the Update and Delete buttons.
Switch Roles¶
The Switch Roles tab lets administrators define reusable network schemes for switches. Each role captures settings such as VLAN/VNI ranges, subnet allocation, DHCP relay servers, and route map associations that are critical for consistent network provisioning.

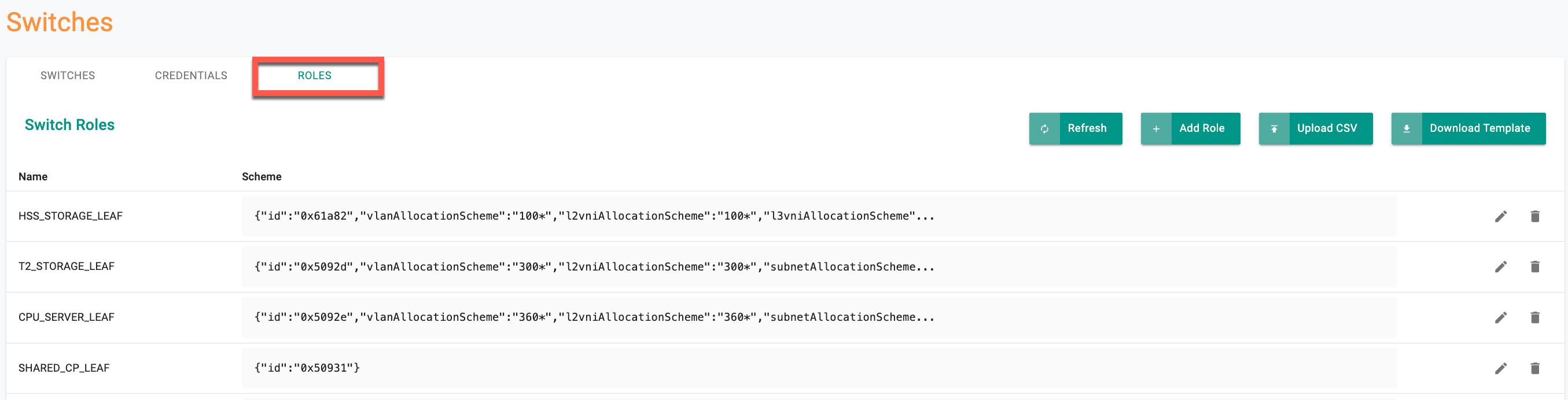

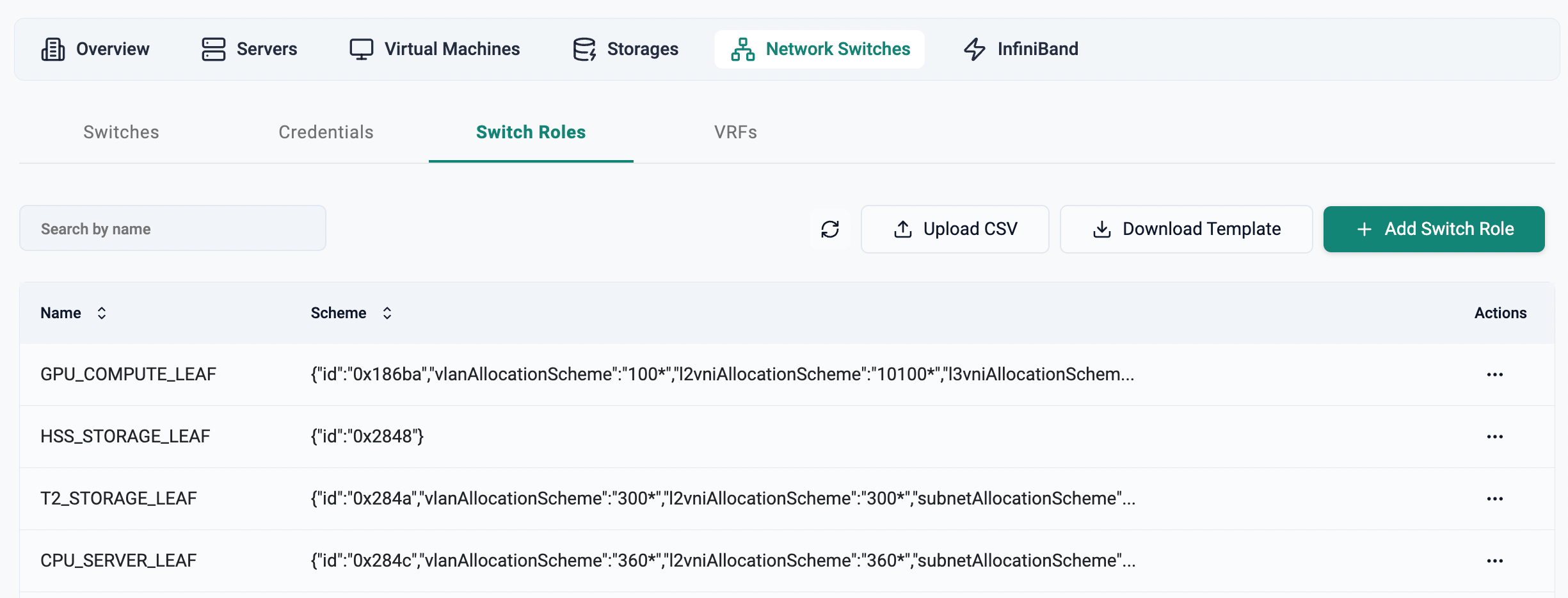

Table View¶
The roles list displays:
Field | Description | Example |
---|---|---|
Name | Name of the switch role | HSS_STORAGE_LEAF |
Scheme | Encoded JSON object defining VLANs, VNIs, subnets, IP pools, and route policies | See detailed example below |
Add/Edit Role¶

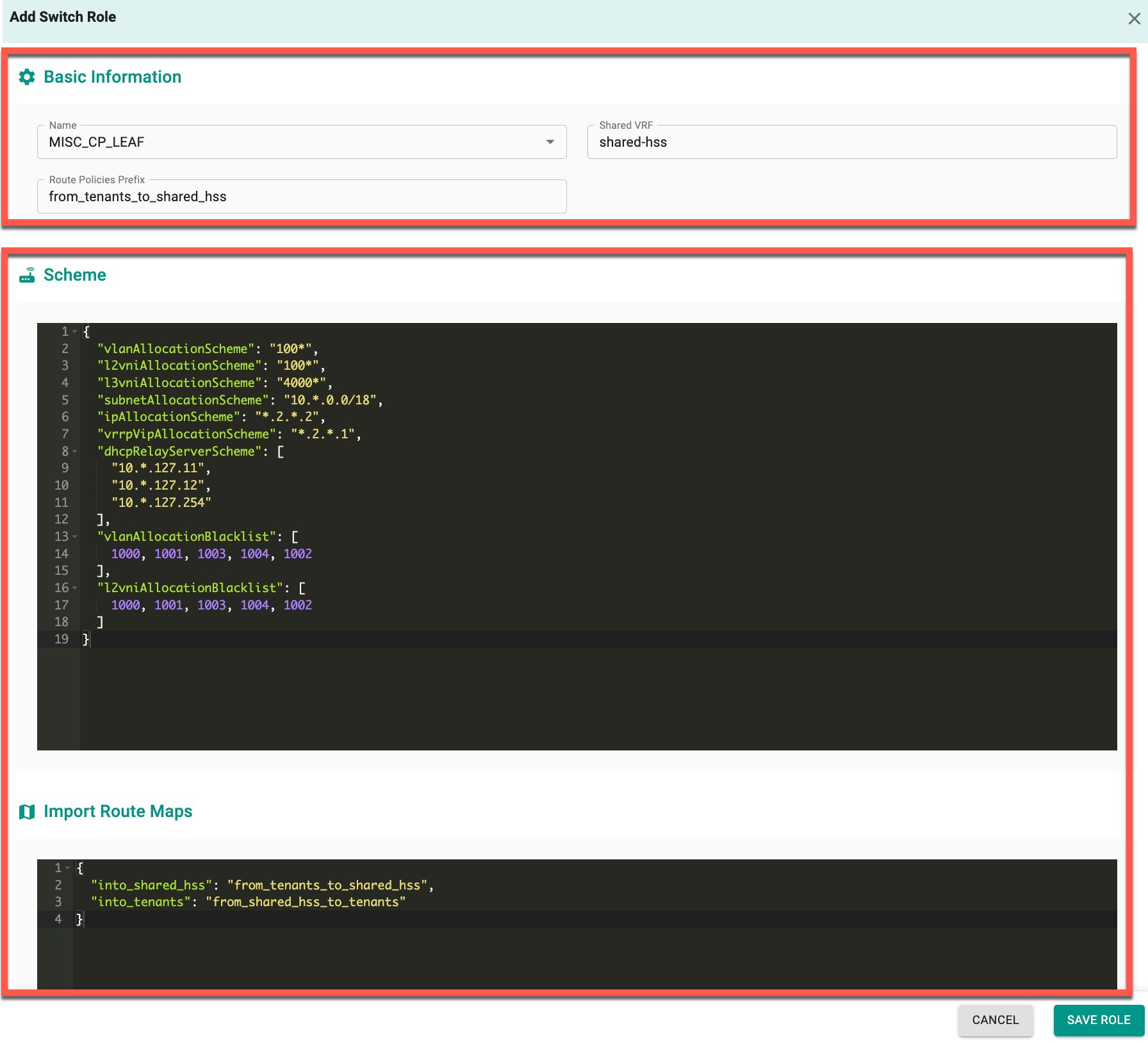

Click Add Role or the edit icon to define or update a switch role.
Basic information¶
Field | Description | Example |
---|---|---|
Name | Select a predefined switch role from the dropdown | MISC_CP_LEAF , GPU_COMPUTE_LEAF |
Shared VRF | Optional VRF shared across tenants | shared-hss |
Route Policies Prefix | Optional prefix for identifying associated route maps | from_tenants_to_shared_hss |
Scheme (Example)¶
{
"vlanAllocationScheme": "100*",
"l2vniAllocationScheme": "100*",
"l3vniAllocationScheme": "4000*",
"subnetAllocationScheme": "10.*.0.0/18",
"ipAllocationScheme": "*.2.*.2",
"vrrpVipAllocationScheme": "*.2.*.1",
"dhcpRelayServerScheme": [
"10.*.127.11",
"10.*.127.12",
"10.*.127.254"
],
"vlanAllocationBlacklist": [
1000, 1001, 1003, 1004, 1002
],
"l2vniAllocationBlacklist": [
1000, 1001, 1003, 1004, 1002
]
}
Import Route Maps (Example)¶
{
"into_shared_hss": "from_tenants_to_shared_hss",
"into_tenants": "from_shared_hss_to_tenants"
}
Additional Options
Users can perform the following actions:
- Refresh: Click the refresh icon to reload the list of roles and reflect any recent changes.
- Upload CSV: Bulk upload multiple roles using a CSV file formatted according to the system's expected structure.
- Download Template: Click to download a sample CSV file with the correct structure for role definitions. This helps ensure your data matches the expected format before uploading.
Once saved, the role becomes selectable when adding or editing switches under the Switches tab, ensuring consistent policy application across the environment.
VRFs¶
The VRFs tab lets administrators manage Virtual Routing and Forwarding instances. A VRF defines isolated network paths within the same switch fabric, allowing multiple tenants or applications to use overlapping IP spaces without conflict.

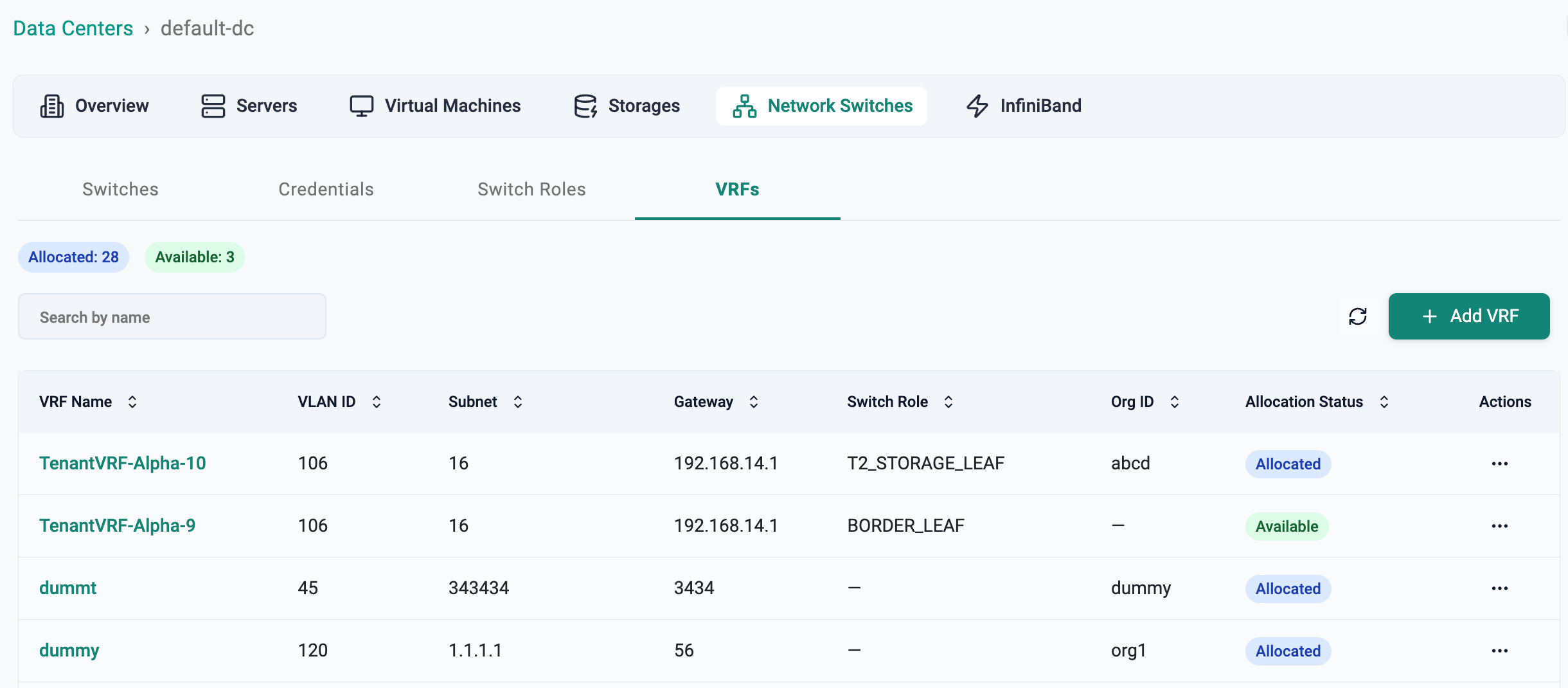

Table View¶
The VRFs list displays:
Field | Description | Example |
---|---|---|
VRF Name | Name of the VRF instance | TenantVRF-Alpha-10 |
VLAN ID | VLAN associated with the VRF | 106 |
Subnet | Subnet allocated to the VRF | 192.168.14.0/24 |
Gateway | Gateway IP address for the VRF | 192.168.14.1 |
Switch Role | Associated switch role (if applicable) | T2_STORAGE_LEAF |
Org ID | Organization identifier associated with the VRF | orgid1 |
Allocation Status | Indicates whether the VRF is allocated or available | Allocated , Available |
Add/Edit VRF¶
Click Add VRF or the edit icon to define or update a VRF.
Field | Description | Example |
---|---|---|
VRF Name | Unique name of the VRF | TenantVRF-Alpha-001 |
VLAN ID | VLAN assigned to the VRF | 106 |
Subnet | Subnet to be associated with the VRF | 16 |
Gateway | Gateway IP for the subnet | 192.168.14.1 |
Org ID | Organization identifier for the VRF | orgid1 |
Click the refresh icon to reload the list of VRFs and reflect any recent changes.
