By providing developers with end-user self-service provisioning of VMs on VMware vSphere can significantly boosts developer productivity by removing friction, reducing delays, and fostering agility in development workflows.

Info

Review the benefits of this approach.

Architecture

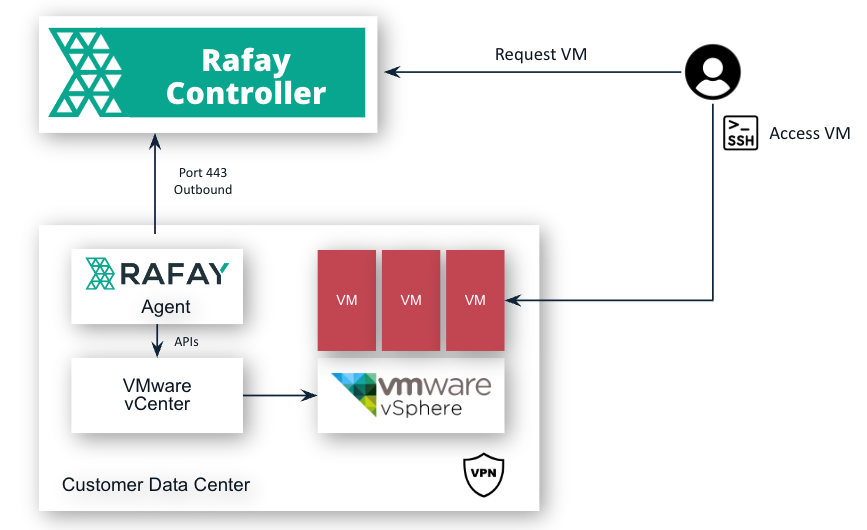

The diagram illustrates how Rafay enables end-user self-service VM provisioning on VMware vSphere infrastructure, streamlining developer access to virtual machines while maintaining enterprise-grade control and visibility.

Architecture

Customer Data Center

At the heart of the deployment is the customer’s on-premises data center(s), which houses:

  • VMware vCenter and vSphere, responsible for VM lifecycle management.
  • Rafay Agent, deployed within the customer environment, which securely interfaces with vCenter using VMware APIs.
  • Virtual Machines (VMs) provisioned and managed by vSphere based on user requests.

Rafay Controller & Self-Service Portal

The Rafay Controller (SaaS or Self Hosted in the customer's datacenter) communicates with the Rafay Agent over port 443 (outbound only)—ensuring secure, firewall-friendly connectivity without inbound port requirements. End users interact with the Self-Service Portal, a web based portal provided by Rafay, where they can request VMs as needed.

sequenceDiagram
    participant Developer
    participant SelfServicePortal
    participant RafayController
    participant RafayAgent
    participant vCenter
    participant vSphere
    participant VM

    Developer->>SelfServicePortal: Request VM
    SelfServicePortal->>RafayController: Forward VM request
    RafayController->>RafayAgent: Initiate provisioning workflow
    RafayAgent->>vCenter: Call vCenter API to provision VM
    vCenter->>vSphere: Trigger VM creation
    vSphere->>VM: Instantiate new VM
    VM-->>vSphere: VM Ready
    vSphere-->>vCenter: Notify VM provisioned
    vCenter-->>RafayAgent: Provisioning complete
    RafayAgent-->>RafayController: Status update
    RafayController-->>SelfServicePortal: Notify user
    Developer->>VM: Access via SSH

🔒 Security & Access

All communication between the Rafay Controller and the customer environment is outbound and encrypted, preserving perimeter security.

  • VM access for users is typically via secure protocols like SSH, and access control policies can be enforced centrally.
  • Optional VPN integration ensures secure connectivity for VM access in private environments.
